Light Algorithms

The combination of creativity and mathematical analysis in Issey Miyake's new collection of lamps marks an advanced and technologically innovative evolution of the traditional Japanese paper lamp.

This article was originally published in DOMUS 958 / May 2012

With its variable forms pervaded by subtly luminous nuances, the In-Ei Issey Miyake collection of lamps made by Artemide produces intriguing variations of light and shade: a suffused, Japanese light, created through algorithmic design and the application of mathematical principles. "Seeing them is instant emotion; and as you get to know them, your astonishment and wonder mingle with an awareness of gazing into a future that we had thought was further off and not so splendid." Thus Ernesto Gismondi, president and founder of Artemide, introduces In-Ei , which in Japanese means "shadow", "nuance".

In his book Hidden Order , Yoshinobu Ashihara associates the Western culture of light with a treetop, and the Japanese aesthetic of shade with the lower part of the tree, its subterranean roots.

The Western culture appears to be an extrovert one, which loves and seeks light; whereas that of the Rising Sun is more introverted: on the one hand a predilection for sharp light and shade, on the other for nuances.

Perceptive quality
The whole project is a synthesis of creativity and mathematical analysis, based on a special fabric that can assume and maintain forms in 3D starting from an ordinary flat sheet. Although at first glance the material of which they are composed seems to be washi (the traditional Japanese paper), the lamps are actually made with a special fabric selected for its resistance and for its tactile texture, similar to that of washi paper.

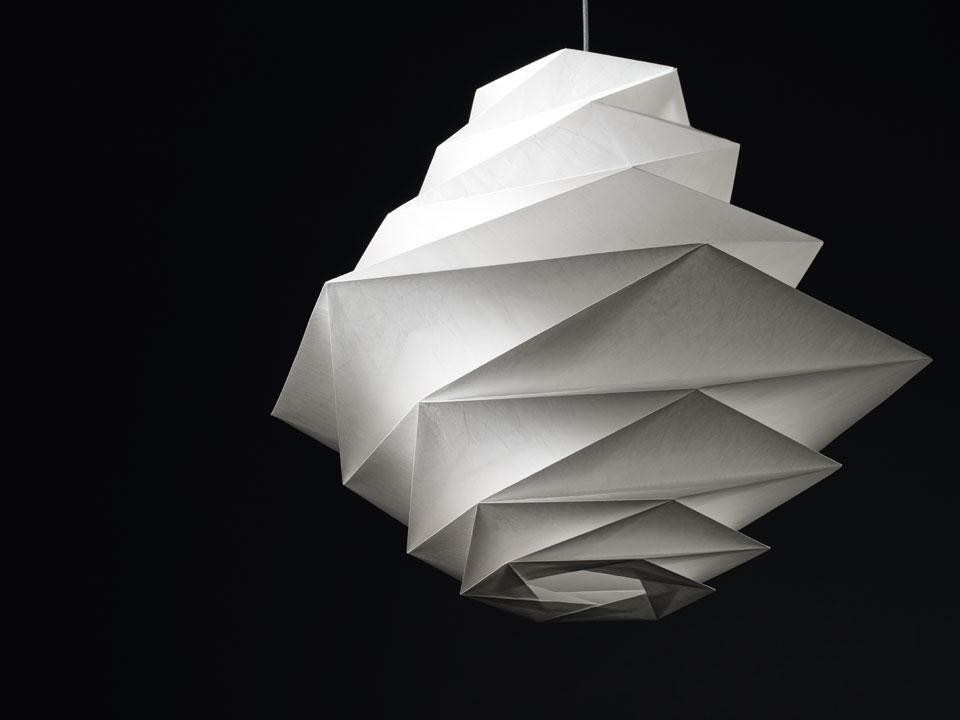

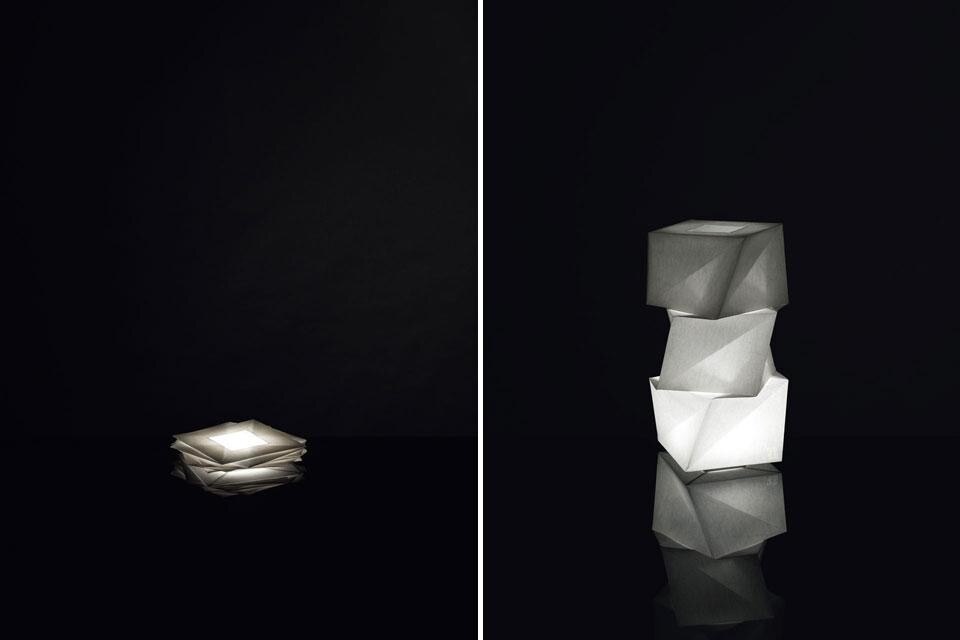

Top: The <em>In-Ei</em> Issey Miyake
lamps are developed with a
special fabric — a regenerated
fibre derived from pet bottles
and with a transparency
superior to that of paper —
which enables 3D forms to be
perfectly maintained without
any internal structure.
When not in use, the lamps
can be folded up for storage. Above: A phase of the cutting and presss-ironing process behind the making of <em>In-Ei</em>
Top: The In-Ei Issey Miyake lamps are developed with a special fabric — a regenerated fibre derived from pet bottles and with a transparency superior to that of paper — which enables 3D forms to be perfectly maintained without any internal structure. When not in use, the lamps can be folded up for storage. Above: A phase of the cutting and presss-ironing process behind the making of In-Ei
In his essay In Praise of Shadows , Junichiro Tanizaki notes the perceptive difference of paper in Western culture to that of the Orient: "Paper, I understand, was invented by the Chinese; but Western paper is to us no more than something to be used, while the texture of Chinese paper and Japanese paper gives us a certain feeling of warmth, of calm and repose. Even the same white could as well be one colour for Western paper and another for our own. Western paper turns away the light, while our paper seems to take it in, to envelop it gently, like the soft surface of a first snowfall."
The cutting and
press-ironing process
produces the form-from-memory
structural folds of
the <em>In-Ei</em> lamps in Miyake’s
Reality Lab in Tokyo

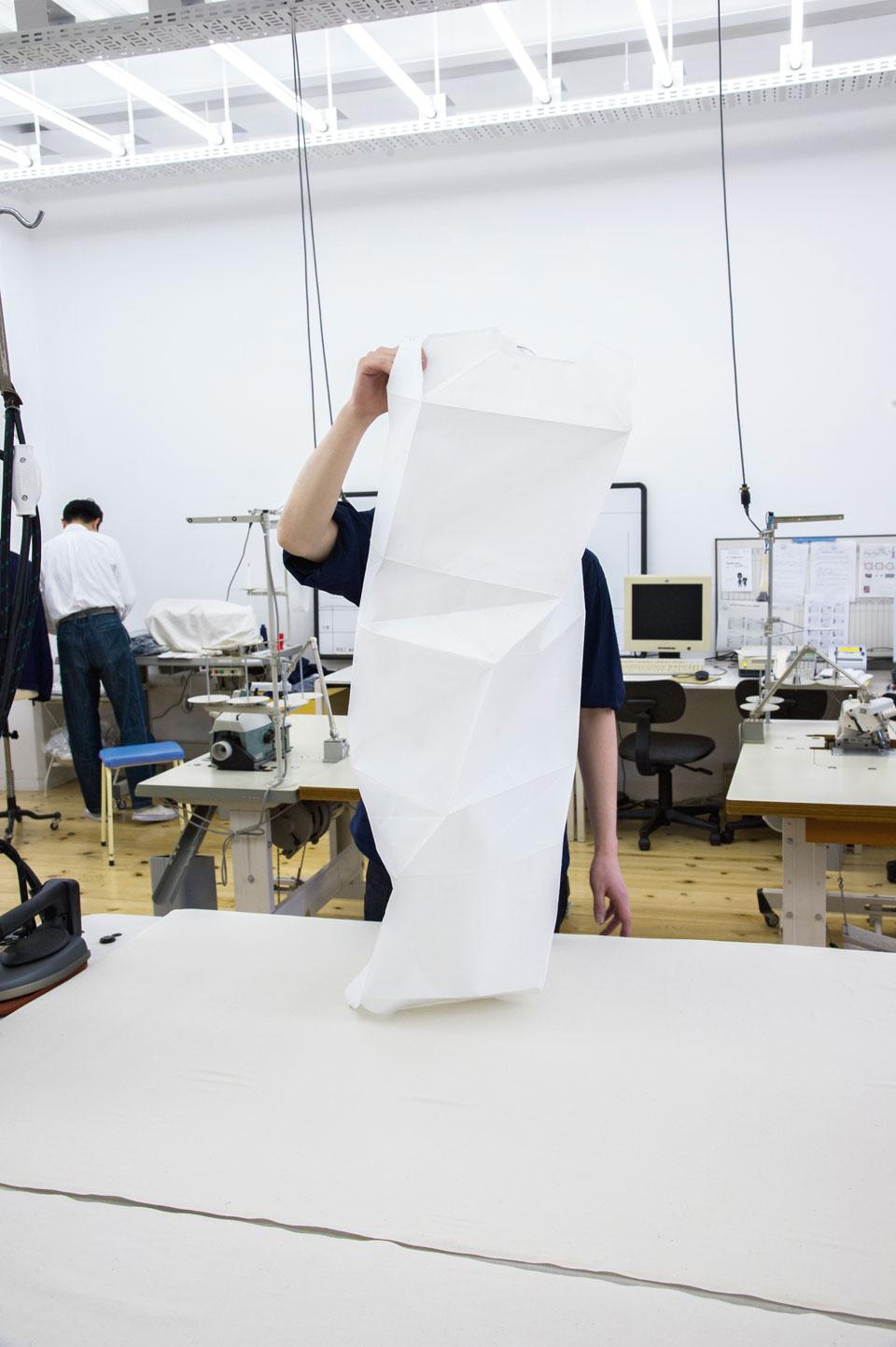

The cutting and press-ironing process produces the form-from-memory structural folds of the In-Ei lamps in Miyake’s Reality Lab in Tokyo
Folding form from memory
In-Ei is part of the "132 5 " project, which Miyake has been developing through his Reality Lab, in collaboration with two engineers, an information technology scientist, four young individuals, and Jun Mitani, a university teacher of mathematics who is also an origami buff. The "1" refers to the single piece of fabric from which each creation is created; the "3" refers to three-dimensionality; the "2" stems from the fact that initially the fabric is folded into a two-dimensional shape; and the "5", which follows an empty space, refers to the metamorphosis of the folded forms.

The folds that give rise to the forms of the In-Ei lamps are created by a very complex process which, among other things, relies on ultrasound machines and an original technology patented by Miyake. Thanks to their material, these lamps perfectly maintain their form without necessitating any internal structure at all. The special process of press-ironing produces structural folds that are memorised by the fabric, thereby making the lamps extendible objects that can be refolded and stowed away in a flash.
In-Ei is part of the “132 5” project, which Miyake has been developing through his Reality Lab, with two engineers, an it scientist and a university teacher of mathematics who is also an origami buff

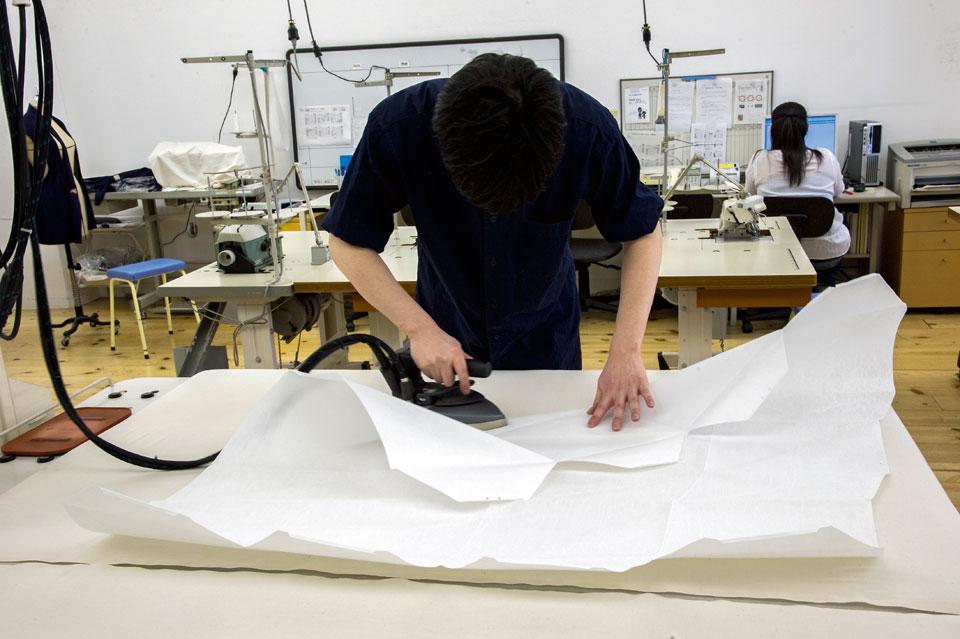

The
shade is diagonally folded by
hand using an iron to prepare
for the next pressing process

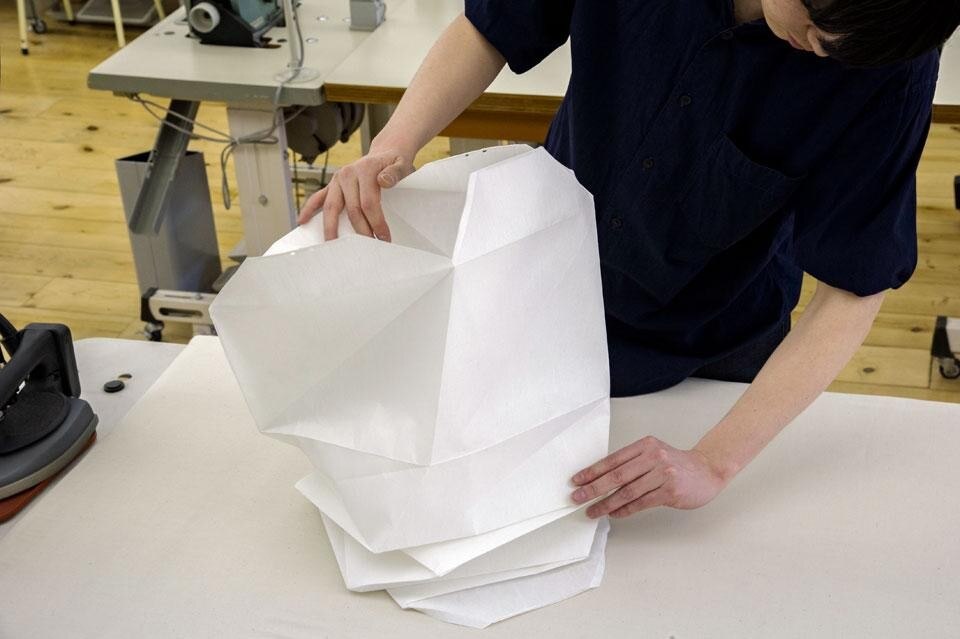

The shade is diagonally folded by hand using an iron to prepare for the next pressing process
Reality Lab began exploring the possibilities of "132 5" in the clothing industry, only later turning to the lighting sector. But it was not until the encounter with Artemide's expertise that it became possible to create In-Ei Issey Miyake.

The affinities of outlook between Artemide and Miyake's Reality Lab also stem from the importance both attach to issues of sustainability. "In my projects, I never start from form, but always from the material. I never find myself associating a material with a form, but exactly the opposite. It is by starting from the available material that I 'compose'. When I don't have the material I want, I try inventing it." Not by chance, the fabric on which the design has been developed is an innovative material with an unusual capacity to diffuse light. A regenerated fibre entirely derived from PET bottles, it is the result of new industrial techniques that cut energy consumption and carbon dioxide emissions by 40 per cent. The highly evocative forms thus created are animated by Artemide led lights, today's most relevant technology in terms of sustainability.
The folded shade
is pressed in the pressing
machine

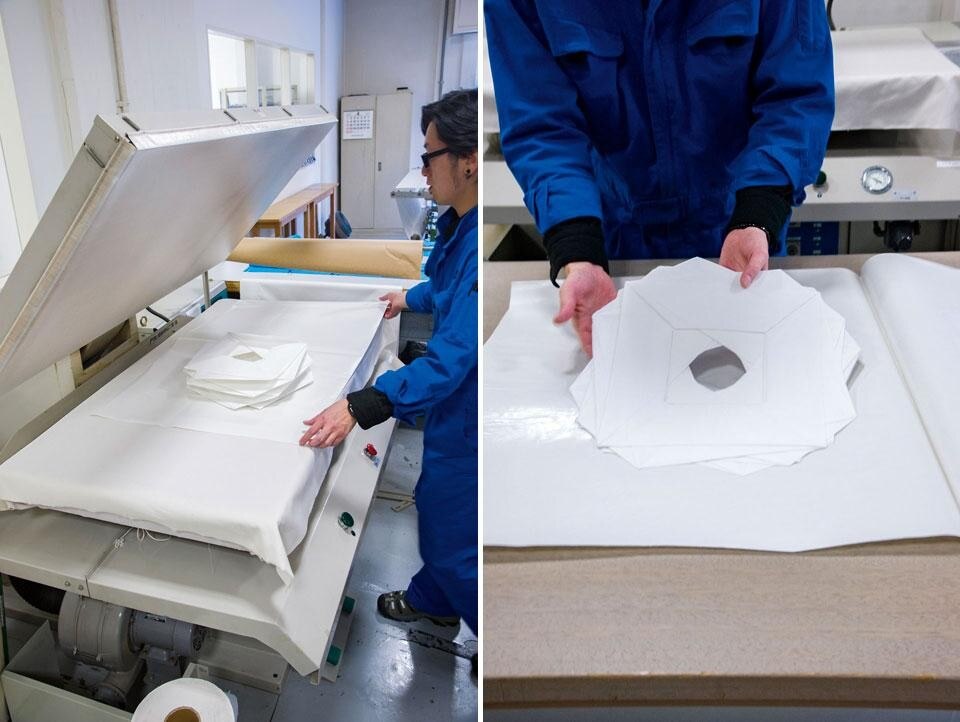

The folded shade is pressed in the pressing machine
Beauty is not in the thing itself
Ernesto Gismondi was once a missile engineer, but chose to believe more in the light emitted by bursts of fantasy than in that produced by the explosion of bombs. The spirit shown by Gismondi in his collaboration with Issey Miyake, a visionary designer and fine innovator, is the same as that devoted in the 1980s to his support for the objects produced by the Memphis Group's creative anarchy.
Folds are
made by hand on the sheet
of fabric, and ironed

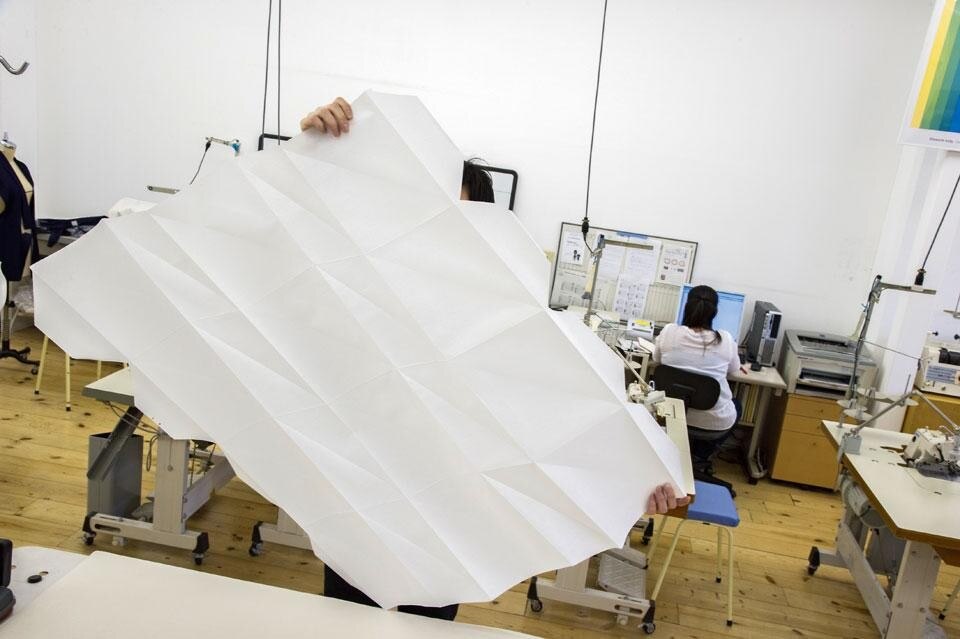

Folds are made by hand on the sheet of fabric, and ironed
"I am particularly proud of this collaboration," says Gismondi, "Issey Miyake dedicates his outstanding artistic commitment to a careful survey of human needs and life, on a par with the pledge that animates 'The Human Light', the Artemide mission's guiding philosophy. With Miyake, above all, a harmony of values and vision has been created."

Miyake comes from Hiroshima, the same city as his friend and master Isamu Noguchi. "My school was on the other side of the Peace Bridge which Kenzo Tange commissioned Noguchi to design. Every day I used to cross that bridge on my bicycle, and every time I would think: Ah, this is design!"
Part
of the fabric is attached by
heat, and the edge is cut at
the same time. In this way,
the tube-shade shape is
basically completed

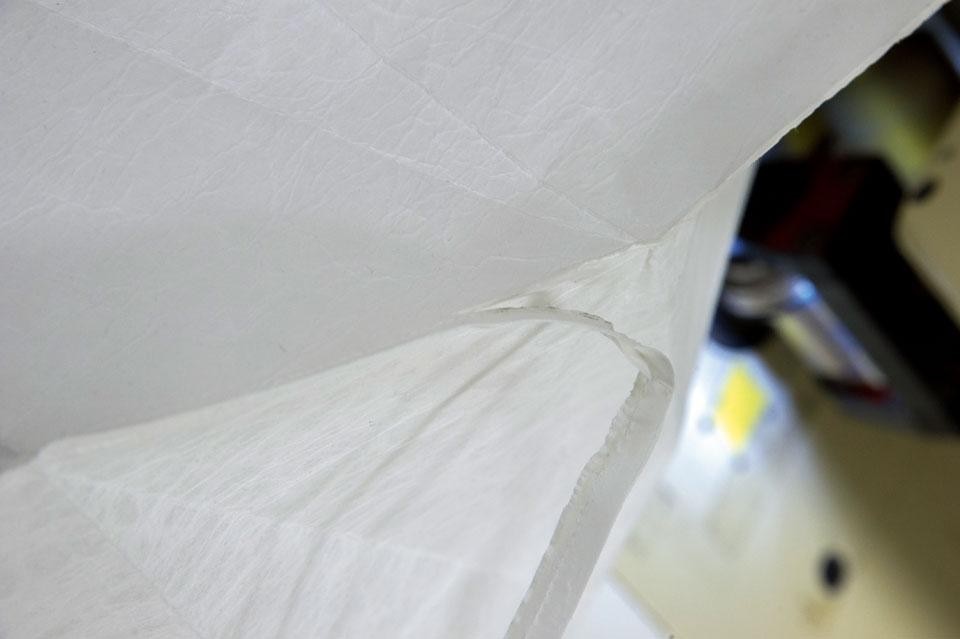

Part of the fabric is attached by heat, and the edge is cut at the same time. In this way, the tube-shade shape is basically completed
On presenting his project, Noguchi told Tange that he had in mind just one word: Ise. And in fact this bridge is imbued with the impermanent spirit of Ise , Japan's holiest Shinto shrine. As Ise, it is not only the built complex that matters, but above all the dynamic relation with its surrounding forest.

Dismantled and reassembled every 20 years, the Ise shrine is home to the Yata no Kagami , one of the three sacred treasures of Japan: a metal mirror reflecting the figure, not clearly but opaquely. Yukio Mishima wrote that it is not the mirror in itself that is sacred, but what it sends back, that is to say its reflection. Imbued with that same spirit is the In-Ei collection of lamps, which Miyake recounts by citing a passage from In Praise of Shadows : "We find beauty not in the thing itself but in the patterns of shadows, the light and the darkness, that one thing against another creates."
The <em>In-Ei</em> collection,
animated by LED sources,
currently numbers five
forms developed for the
floor-standing wall-hung and
suspension versions

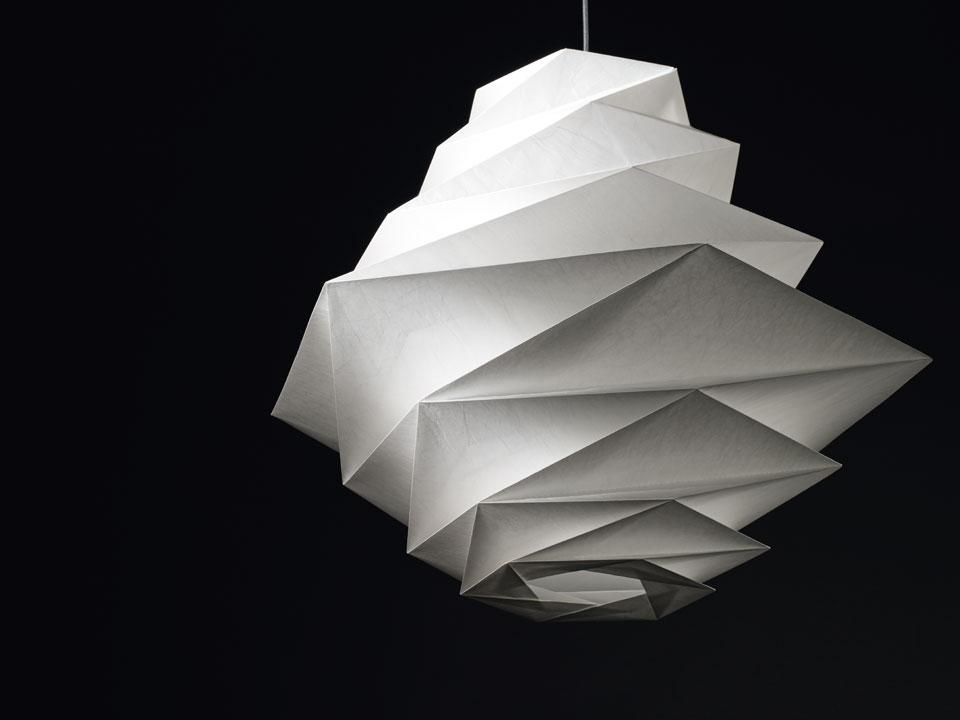

The In-Ei collection, animated by LED sources, currently numbers five forms developed for the floor-standing wall-hung and suspension versions
In the future's favour
During our meeting, Issey Miyake speaks of his friend and master Isamu Noguchi. He maintains that the Akari collection by Noguchi cannot be compared to In-Ei , because the two are utterly different, both in their form and material and in their content. On the one hand, archaic forms are inspired by those of nature seen with the naked eye; on the other, forms are derived from the use of algorithmic design, hence from a reasoning about nature's innermost geometric but cellular code. These are two types of "organic", but different design. To continue this comparison, we have on one side Noguchi with traditional paper in need of a structure, and on the other Miyake with an ultra-innovative, self-supporting material.

Certainly, both are imbued with the same avantgarde spirit. But In-Ei is ahead, an offspring of our time. Miyake and Artemide together have scored a point in favour of the future.
Use of
the special new fabric fibre
cuts energy consumption
and CO2 emissions by 40%
compared to a similar lamp
produced with fresh raw
materials
Use of the special new fabric fibre cuts energy consumption and CO2 emissions by 40% compared to a similar lamp produced with fresh raw materials
