The architectural theme is expressed by treating the compact compact block of the brown Klinker (84 x 42 x 9 meters) through a sequence of excavated fronts, that change its character in relatioship to the interior spaces and the different conditions of external reference.
This deep cuts crossing the volume and bringing the light inside the pool spaces, create precise visual relationships between the different spaces. Between the cuts of the west side there are the two staircases that connect the locker room with the public entrance on the south side of the swimmig pool placed on the northern part of the complex.
The distribution organizes three functional parts: a main big room with a pool for water polo (33 x 25 m) equipped with a 800 seat grandstand, a nucleus of changing rooms on three levels, (athletes, users and fitness) and a room with two small pools for courses.

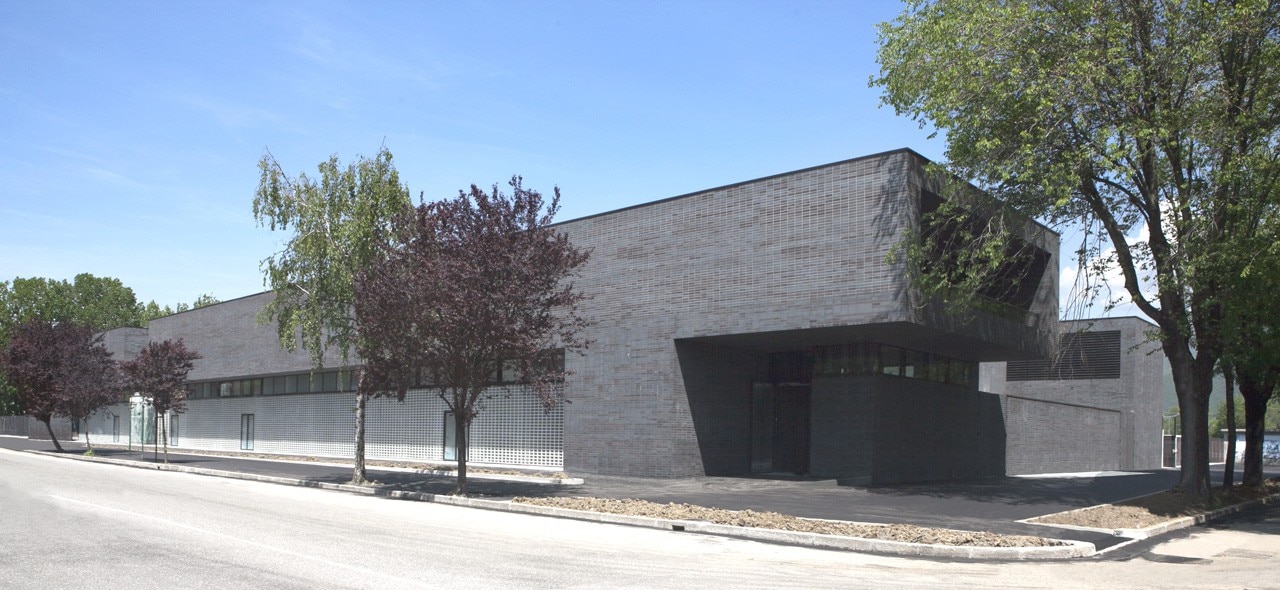

The main room has a large window facing the north outside lawn and to the east side it opens toward a patio with big bamboo’s plants. On the south side, facing the street, behind the grandstand, a glass wall illuminates the underground technical spaces.
The big pool room’s west internal elevation presents two vertical cuts that connect this area to the smaller pools and the public entrance.

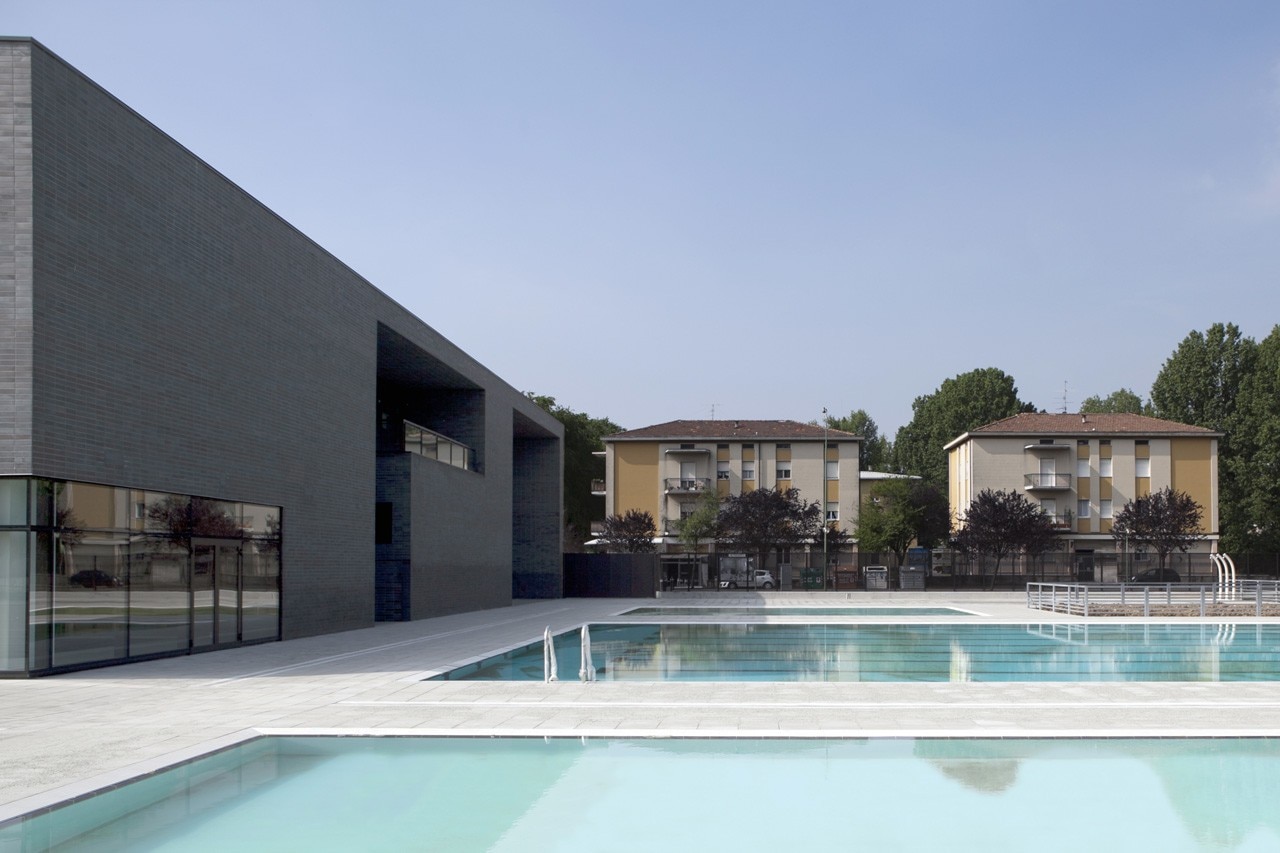

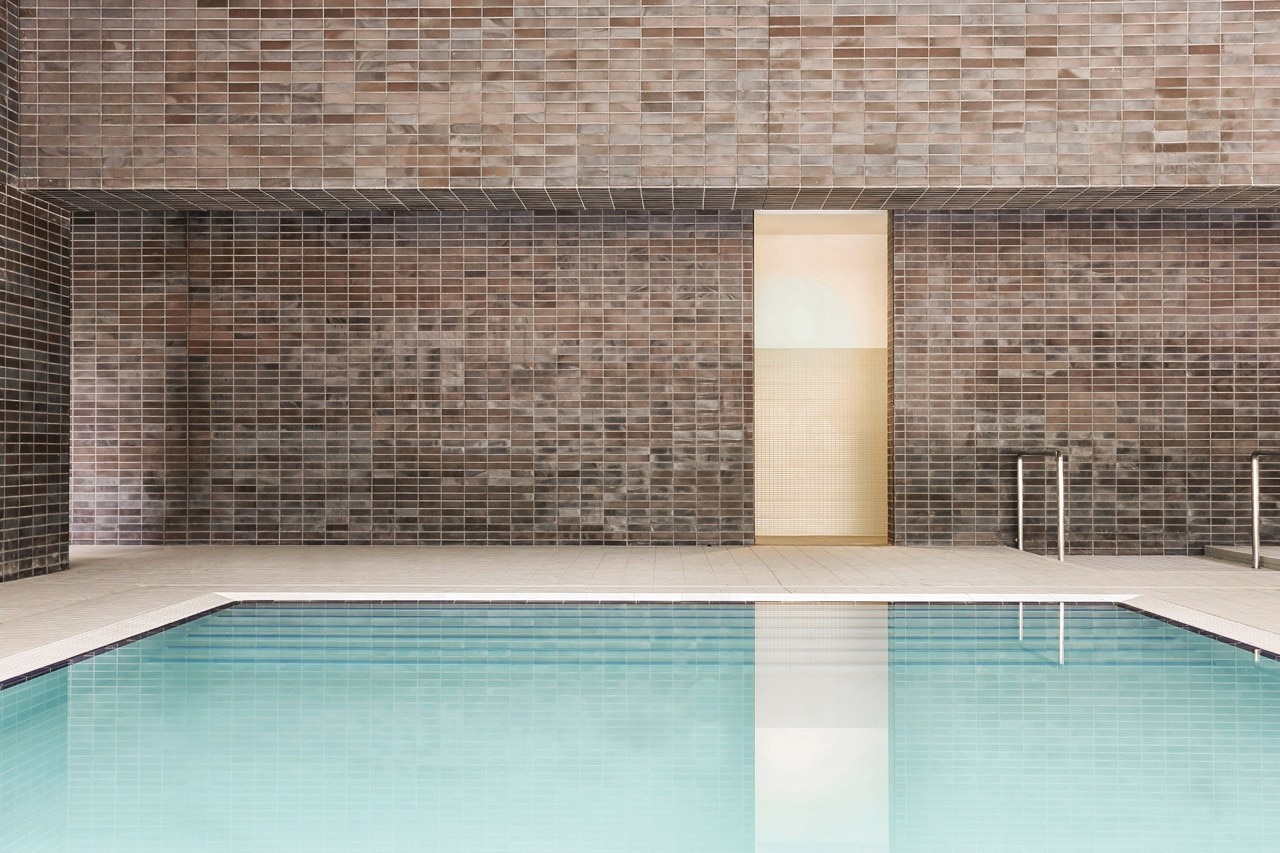

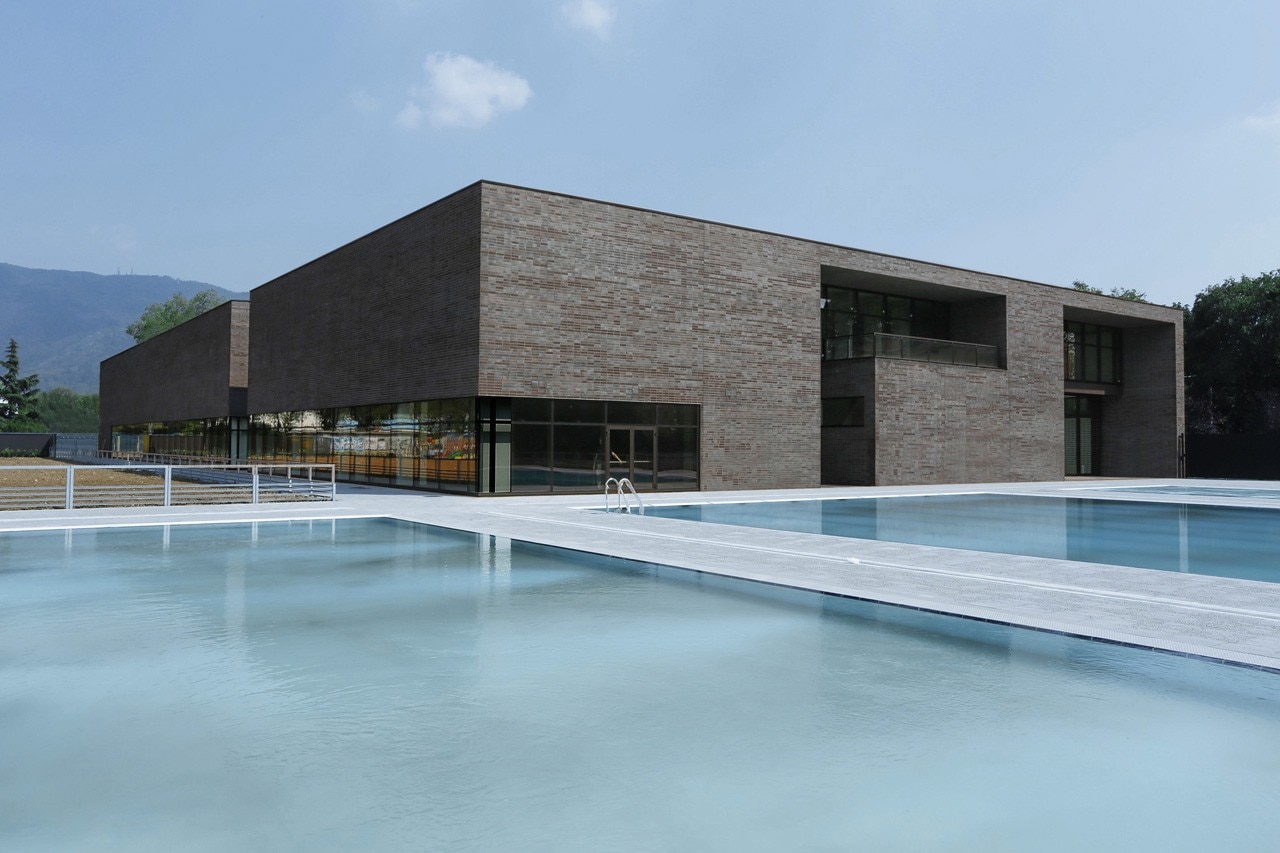

In the west block, where the locker rooms and the two small pools for the courses are located, an horizontal window runs around the corners creating a visual continuity that connects the small pool hall with the one of water polo. On the east side, a loggia opens the gym to the exthernal swimming pools, while another double-height loggia with a bar is in direct relation with the south public entrance.
/Volumes/Archivio Morto/archivio per pubblicazioni/05_progetti/brescia_piscine mompiano 2005/disegni/dwg/inquadramento.dwg
TAV05 - PIANO INTERRATO 1-100
TAV07 - PIANO PRIMO 1-100
Swimming Center, Mompiano, Brescia, Italy
Program: sports center
Architects: Camillo Botticini with F. Craca and A. Foresti - ATI, N. Martinoli and Studio Montanari
Structures: Studio Montanari, Claudio Toniolo
Collaborators: Michela Cibaldi, Ignazio Marchetti
Systems: Milano progetti – Studio di Ingegneria. Palumbo ingegneri associati (mechanical equipment), Studio CVR Engineering (electrical systems)
Construction supervision: Marco Rossi, Alessio Rossi
Contractor: Campana Costruzioni srl
Procedure Manager: Vera Sabatti
Area: 3,261 sqm (covered area); 12,000 sqm (outdoor)
