The Wooden Hall

Seilerlinhart Architects’s project for a carpentry in Switzerland, an elongated timber production hall, covered with local spruce shingles, reflects the sustainability of the timber system.

Seilerlinhart Architects, Wooden Hall Walter Küng AG, Alpnach, Switzerland
At the southwestern tip of Lake Lucerne, the Swiss Commune Alpnach is nestled in the wooded mountains and surrounded by extensive pastures.

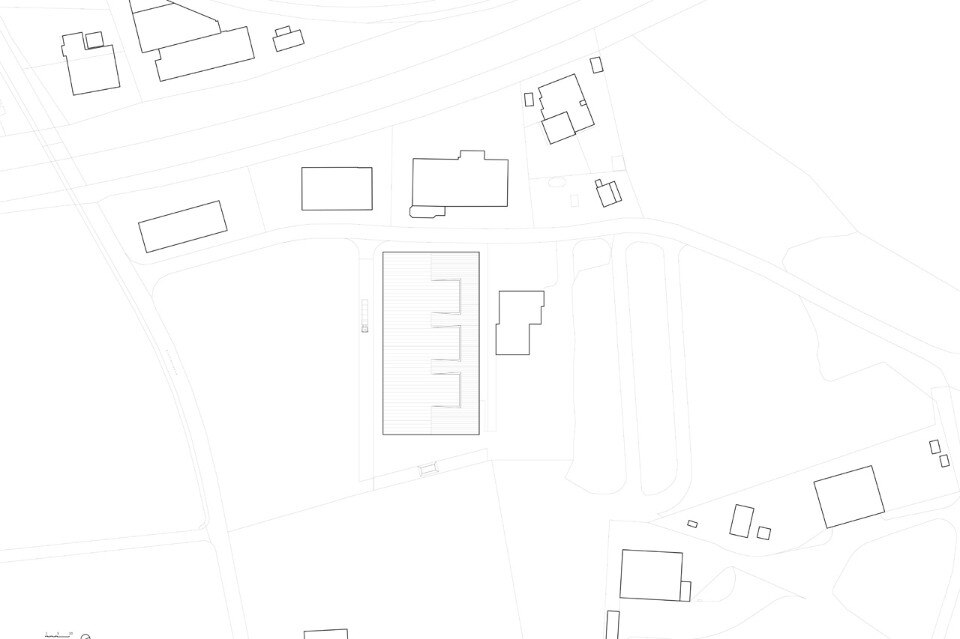

The production site of Walter Kung AG between Alpnach Dorf and Alpnachstad got an extension by Seilerlinhart Architects: an elongated timber production hall, dressed in large-format shingles from local spruce.
Seilerlinhart Architects, Wooden Hall Walter Küng AG, Alpnach, Switzerland
Seilerlinhart Architects, Wooden Hall Walter Küng AG, Alpnach, Switzerland

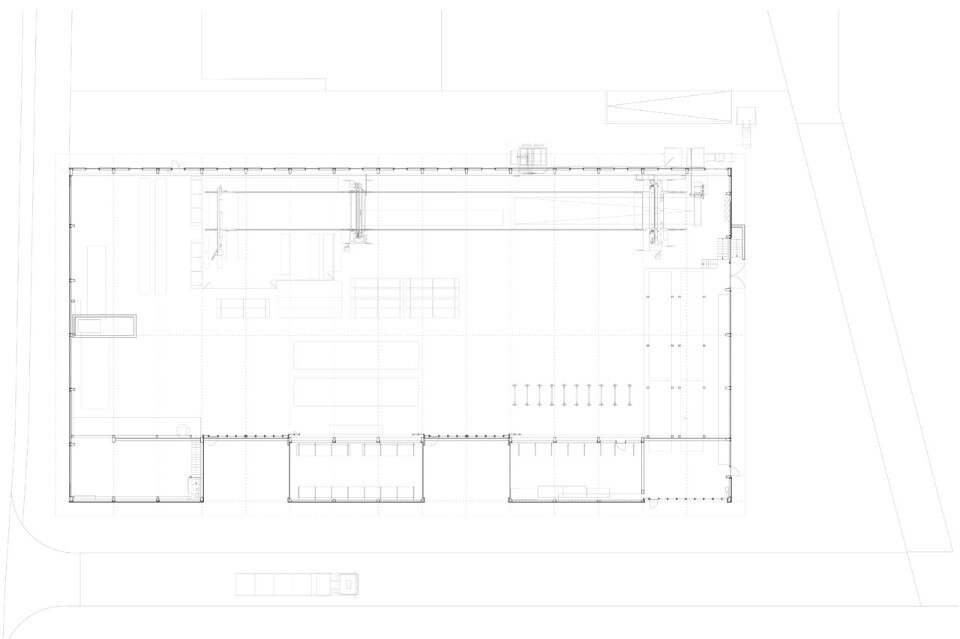

The company, which began as a carpentry in 1977 required, for the preparation of a new timber element system, a further production hall, designed to reflect the idea of the sustainability of this timber system. On an area of 38 x 78 meters the one storey building forms a clear contrast to the unremarkable built surrounding.

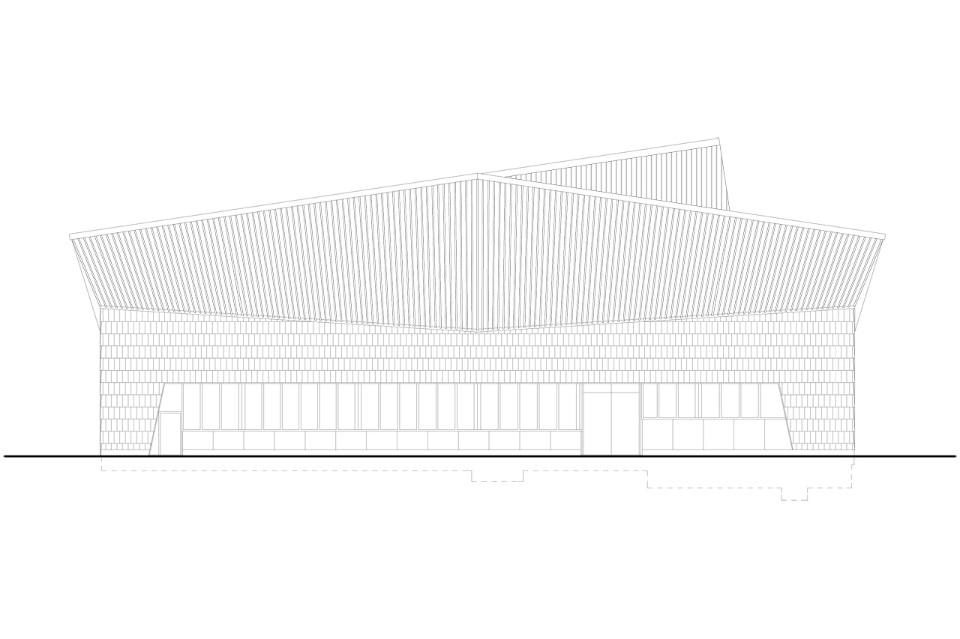

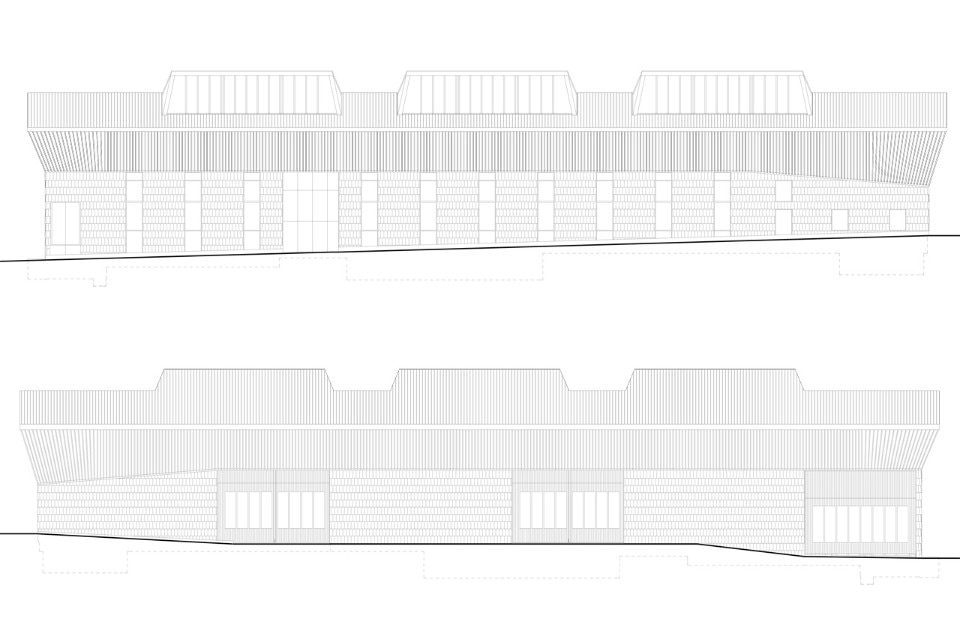

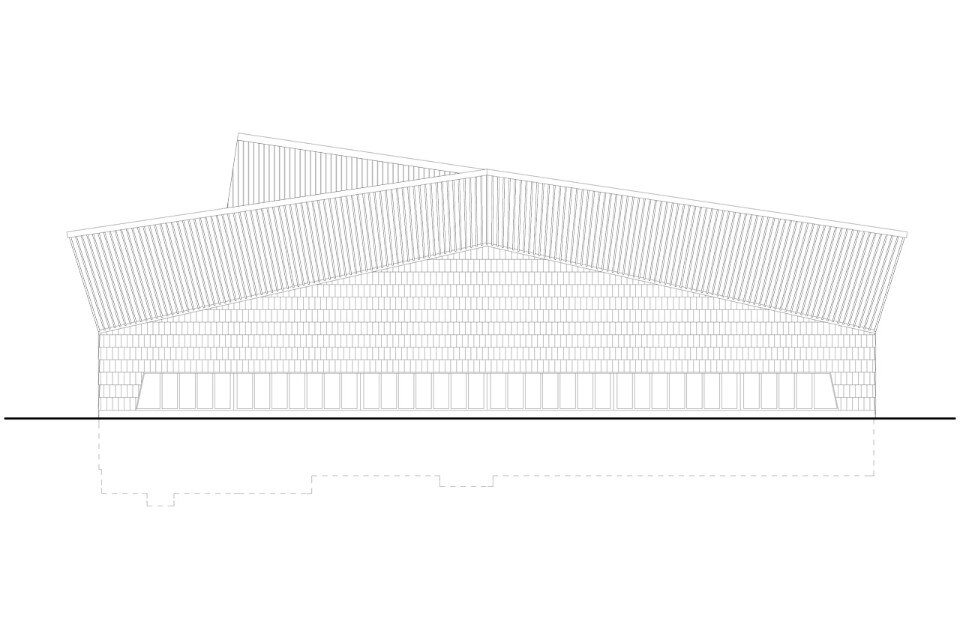

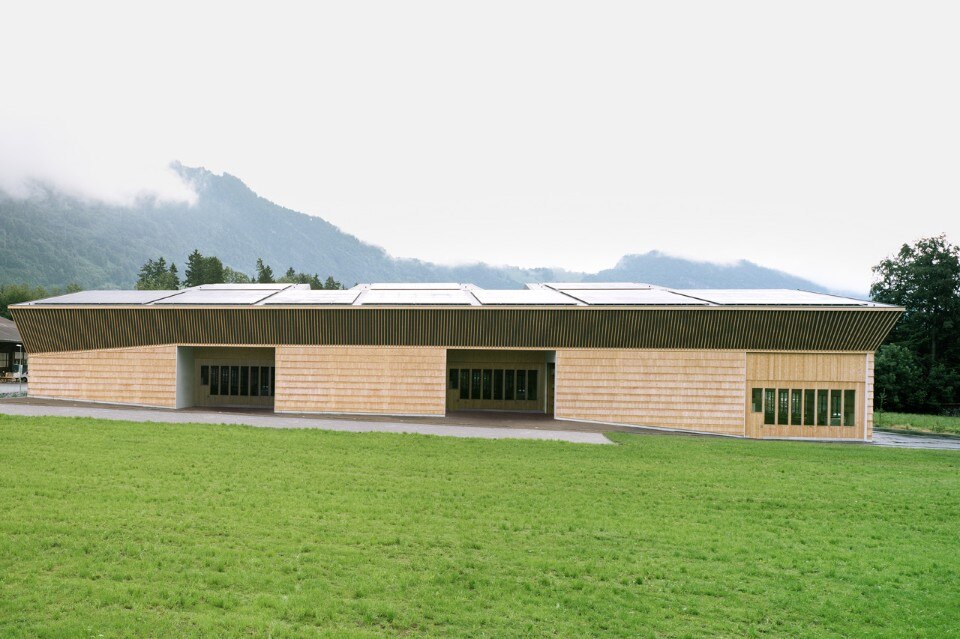

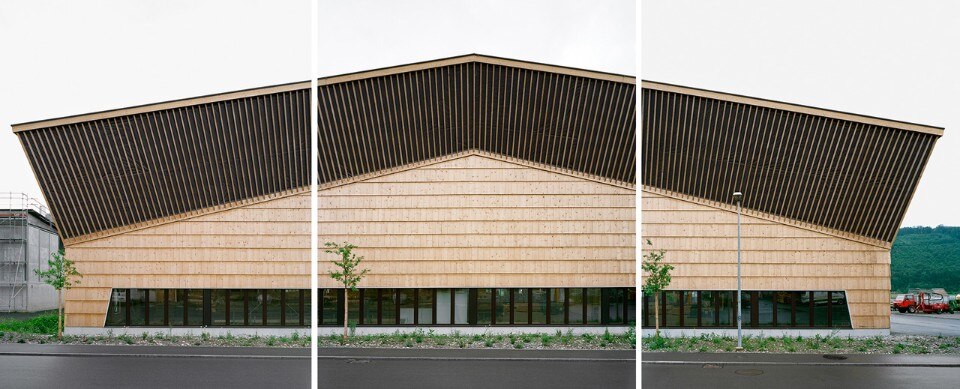

Apart from the facade of wood shingle, the hall is characterized by a distinctive, cantilevered roof soffit made of solid wood slats. Abundant natural light gets into the hall through three large skylights on the north side of the roof. The facades to the west and east are equipped with rows of windows almost the entire width of the building.

Seilerlinhart Architects, Wooden Hall Walter Küng AG, Alpnach, Switzerland
Seilerlinhart Architects, Wooden Hall Walter Küng AG, Alpnach, Switzerland

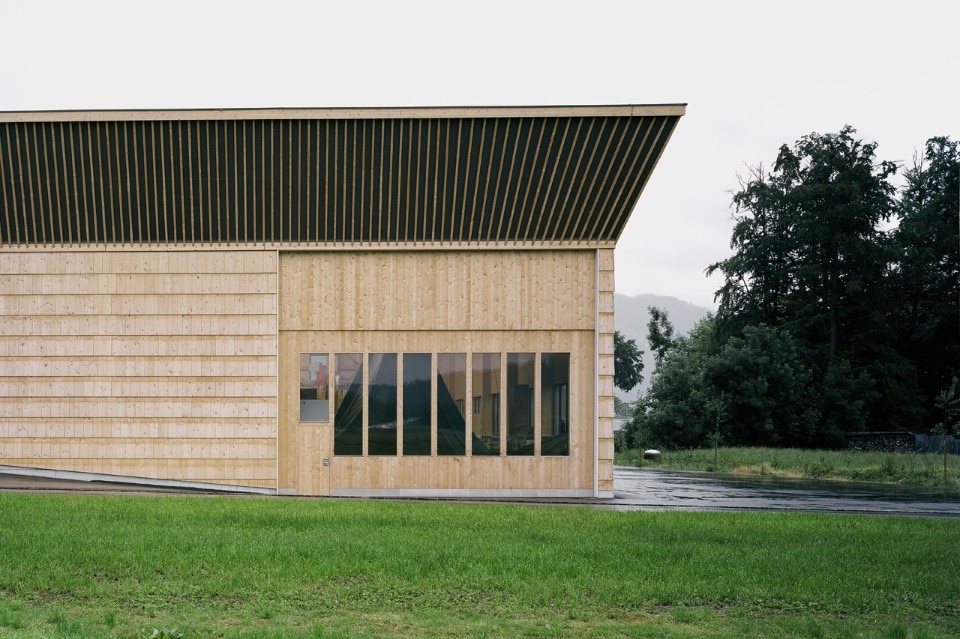

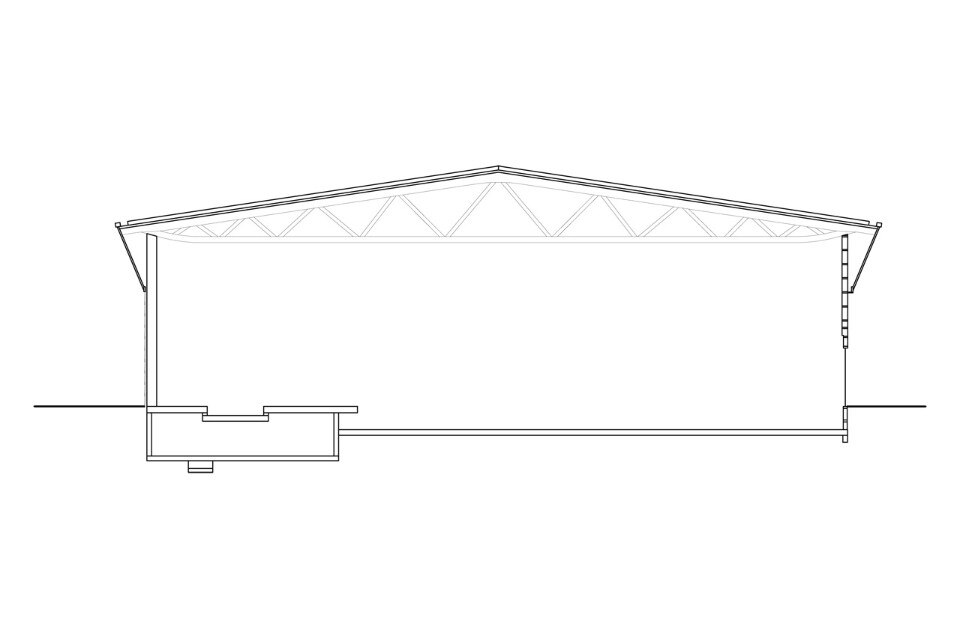

The building is constructed as a skeleton made of local wood. Supporting structure, wall and ceiling coverings made of solid pine and spruce. Huge deck truss glulam support the roof and rhythmically arranged columns on the outer walls lead the loads tot he ground. The outer clothing of massive, large-format wooden shingles is traditionally performed like scales. Rock wool serves as insulation material, it has a good energy balance because of the energy required for the extraction of the raw material, the production and transport is relatively low.

For the construction of the production hall exclusively regional spruce and fir wood was used which came from sustainable forests around Lake Lucerne. The short transport routes kept the energy consumption and CO₂ emissions low. An installed photovoltaic system on the roof generates all the electricity needed in the factory. Heat is generated by a wood chip plant in combination heat with the corporation Alpnach (WKAG); heat dissipation via a thermally activated baseplate.


Wooden Hall Walter Kung AG, Alpnach, Switzerland
Program: carpentry
Architects: Seilerlinhart Architects
Project team: Lauber, ZEO
Area: 2,535 sqm
