The NREL Research and Support Facility: a paradigm for designing Net Zero Energy Buildings.

A Net (or Near) Zero Energy Building (NZEB) is characterized by extremely reduced energy consumption which can be met through the use of technologies for energy production from renewable resources. The achievement of this energy goal must necessarily be accompanied by design choices that significantly influence architectural form. In fact, if we look at the primary characteristic of an NZEB—low energy consumption—this translates into energy efficiency measures and the use of mechanical systems which affect both the way in which the envelope as well as its contents are conceived, establishing a strong connection between form of energy and form of architecture.

For example, natural lighting, insulation, passive heating, but also high-efficiency heating, ventilation, air conditioning, natural ventilation, evaporative cooling, geothermal heat pumps are among the strategies most commonly adopted in these buildings. These are elements that influence the quality, but also the comfort, of the interior spaces of buildings, both when they are directly perceivable by the user and when they are not. If we look, then, at the second characteristic of a NZEB—the use of renewable energy production technologies—even in this case, the link to architectural form is extremely evident. Consider, for example, photovoltaic and solar thermal technologies integrated with roofs and facades but also micro wind turbines.

From this brief premise, which is certainly not exhaustive, one can imagine how this kind of building might constitute a very interesting field for design experimentation, because, in fact, in NZEBs there is a very close link between form of energy and architectural form.
Top: All work areas inside the RSF NREL are designed to receive adequate natural light (according to LEED criteria) thanks to the presence of reflective elements placed near the windows and underneath the ceilings.
Top: All work areas inside the RSF NREL are designed to receive adequate natural light (according to LEED criteria) thanks to the presence of reflective elements placed near the windows and underneath the ceilings.
If we now examine the design process, the truly novel aspect concerning the design of an NZEB is that the first step in design is the consideration of its energy balance. In the case of an NZEB, the philosophy of designing a building according to a desired and ambitious energy performance becomes, on the one hand, a matter of finding the right numbers and technologies (through the design and validation of its elements through energy simulations); on the other, it becomes a question of giving concrete form to energy, whether saved, consumed or generated, through the architecture itself. The final step is to measure the effective zero energy balance. This is the verification of the project's quality, if not in terms of its architecture, at least, of course, in terms of its engineering.

Indeed, today's challenge lies in thinking about buildings, and their landscapes, according to new categories which refer to energy issues. It is a matter, in fact, of conceiving novel elements and work spaces according to functional categories that are no longer only the ones known to tradition.
The cooling/heating system.
The cooling/heating system.
A research group at the International Energy Agency, Task 40/Annex 52, "Towards Net Zero Energy Solar Buildings" has been working on the subject of NZEB since 2008 and will continue until 2013.

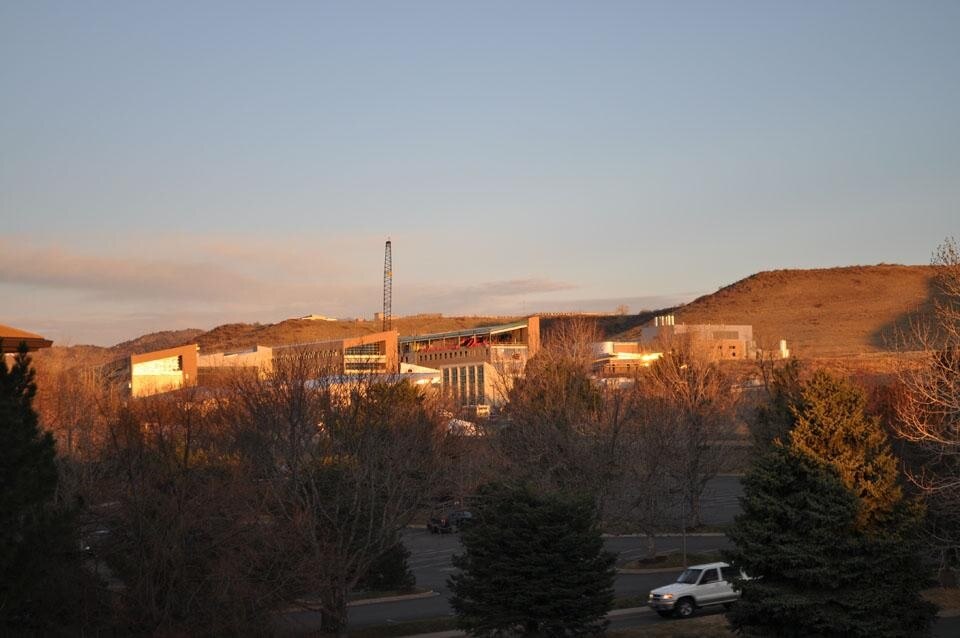

Their last meeting took place in Golden, Colorado, within an NZEB building, the Research Support Facility—RSF—at the National Renewable Energy Laboratory of the U.S. Department of Energy (NREL/US DOE), a building of about 21.8000 square meters in which 800 people work. It opened in October 2010.

I would like to report on how this building is made, and also, what its effects are starting from the beginning—from how it was designed. The strategy adopted for the RSF was to design, "What must be done, not what should be."

It is question of overcoming a design approach that makes "beauty" a primary goal according to some shared aesthetic code favoring, instead, a goal of energy behavior (performance). This does not mean, of course, relinquishing "beauty" but rather it means reworking the aesthetic code by including energy in it.

Consistent with this approach, the RSF project brief asked for a response to well-defined requirements: performance for LEED certification, a commercially replicable approach, energy consumption of approximately 110kWh/m2/anno (less than half that ASHRAE standard), security (of maintenance activities, the dismantling at the end of the building's lifecycle), a high-performance workplace, encouraging encounters with external parties, a building that can support future technologies and that is satisfactory for personnel. The client's intention, in fact, was to make the RSF into a large and replicable office building, an NZEB prototype.
The truly novel aspect concerning the design of an NZEB is that the first step in design is the consideration of its energy balance.

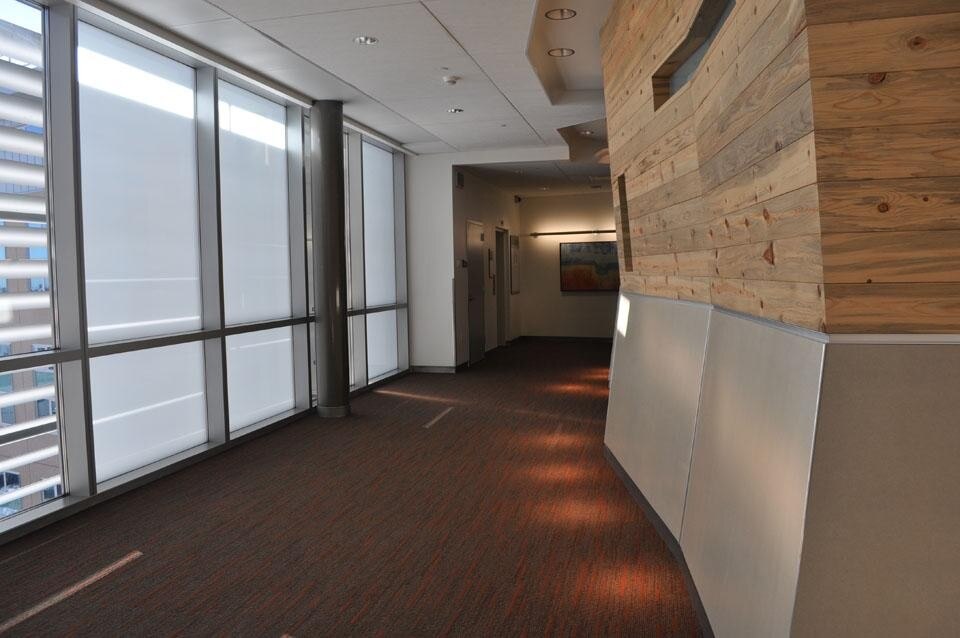

View of a corridor with wooden panels
View of a corridor with wooden panels
The competition was won by a team composed of Haselden Construction (general contractor), together with RNL (Architect, Interior Design, Landscape Architecture) and Stantec (Mechanical, Electrical Engineer and Sustainability Consultant).

The first thing that struck me on entering the building was its smell. A smell of wood, but also of "good" materials which contrasted, on the one hand, with the idea of the building that I had prior to my visit (fully functional, very technical, and thus cold) and, on other, by the fact that I was expecting the building, inhabited only since October 2010, to have that almost industrial odour of new construction.
I then realized that my olfactory sensation was connected to the careful choice of materials, which tended towards the use of eco-friendly (eco-resins and eco-paints), recycled or locally produced materials (like wood). This first impression of "warmth", which already rendered me sympathetic to the building, was strengthened as I visited the other areas. Materials, natural light, colors, shapes and finishes, combine to form the image of a "humane" building, almost as if it were not the special building that it is.

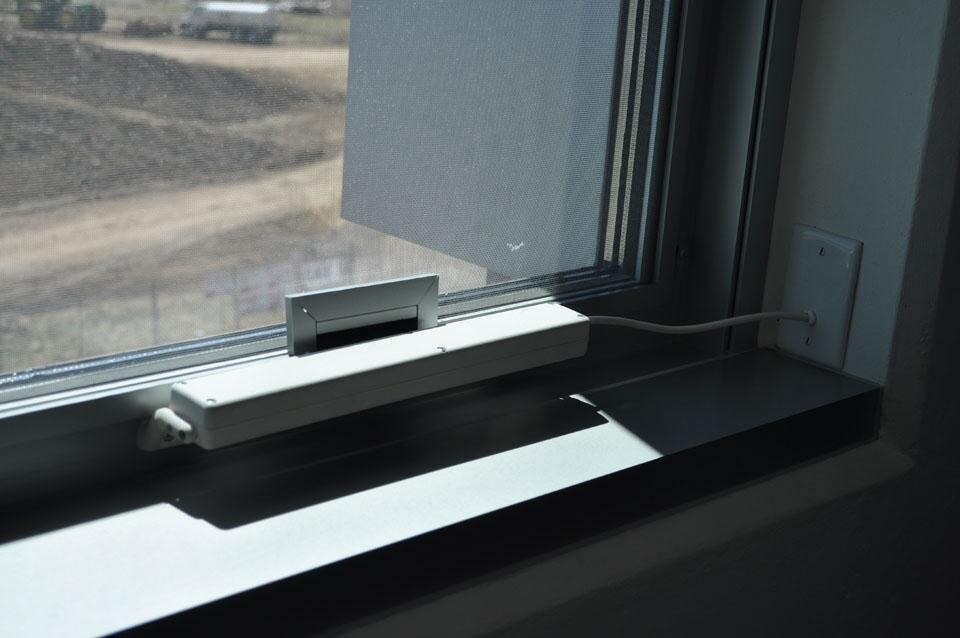

Appropriately designed windows are centrally controlled to allow the ventilation and conditioning of the building’s spaces through natural and nocturnal ventilation systems.
Appropriately designed windows are centrally controlled to allow the ventilation and conditioning of the building’s spaces through natural and nocturnal ventilation systems.
I was expecting, or rather, I suspected, that attention to "numbers" might have distracted attention from other aspects that contribute to creating the perception that users have of a certain place. But no. In fact, having to synthesize the building's best quality, I would say that it consists precisely in the atmosphere that is created inside through the wise use of natural and artificial lighting, materials, and through the form of the spaces (many open space offices) that meet the needs of researchers and creating opportunities for exchange and interaction.

One understands that the building is special only after having been inside for a while, when its technology is perceived. The technology is felt, for example, when the lights are dimmed by a central system that sometimes leaves even the users themselves—who have a rather limited degree of freedom—a bit surprised. The technology, then, is seen not only when you look at the sophisticated openings, for example, but especially when you explore the belly of the building where the mechanical systems are located. It is an ordered system (almost lymphatic) which, even with its visual power, communicates the importance of aspects relating to flows in the building's interior very well. The attention to flows is announced, for example, by the presence of dual taps on the washbasins for water savings or by the many recycling bins. Finally, what you can also see, is the building's performance, measured continuously and communicated by a display at the entrance, showing in real time how much energy the building consumes and produces.
The use of 6W LED lamps on desks.
The use of 6W LED lamps on desks.
Ultimately, I am enthusiastic about this NZEB, except for one thing. There is a great deal of photovoltaic technology but, in the composition of the building, it really plays no role at all. In fact, it simply rests on the roof, flat and practically invisible. Perhaps it is a missed opportunity that could have been expressed through the use of an iconic and recognizable sign indicating the "special" nature of NREL RSF.

We will soon get accustomed to this special nature, since a European directive from 2010[1], states that starting on December 31, 2020 all new buildings must be NZE, while public buildings should be certified even two years before[2].
Alessandra Scognamiglio

Cost: US $57.4 million
Notes
[1] DIRECTIVE 2010/31/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 19 May 2010 on the energy performance of buildings (recast) / http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2010:153:0013:0035:EN:PDF
[2] The definition of "nearly zero-energy building" given by the directive is the following: "'nearly zero-energy building' means a building that has a very high energy performance (...). The nearly zero or very low amount of energy required should be covered to a very significant extent by energy from renewable sources, including energy from renewable sources produced on-site or nearby"

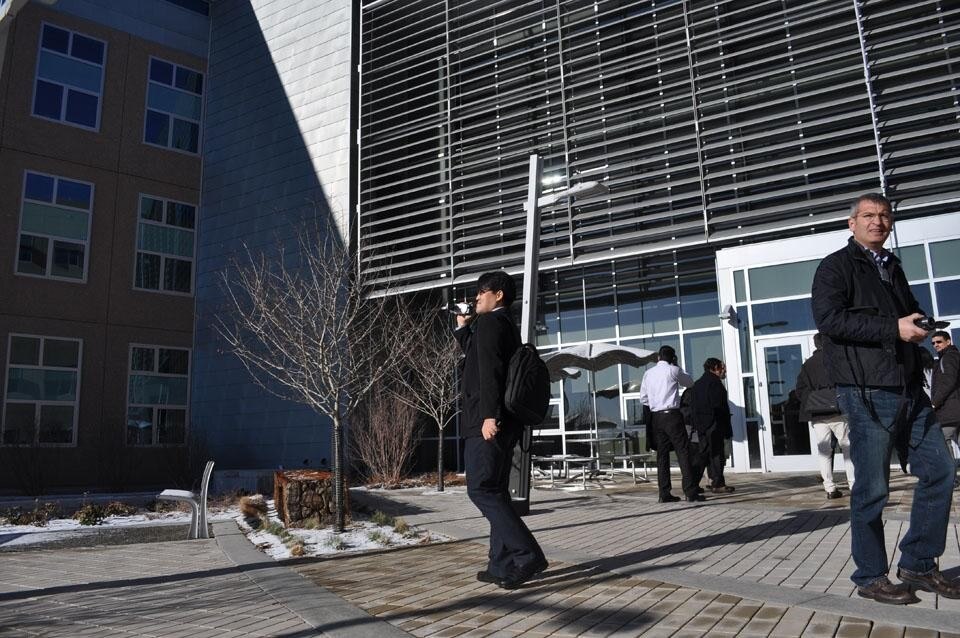

A system of sun screens, an important formal element, minimizes the summer heat load, protecting the glass openings arranged with different orientations and positions.
A system of sun screens, an important formal element, minimizes the summer heat load, protecting the glass openings arranged with different orientations and positions.

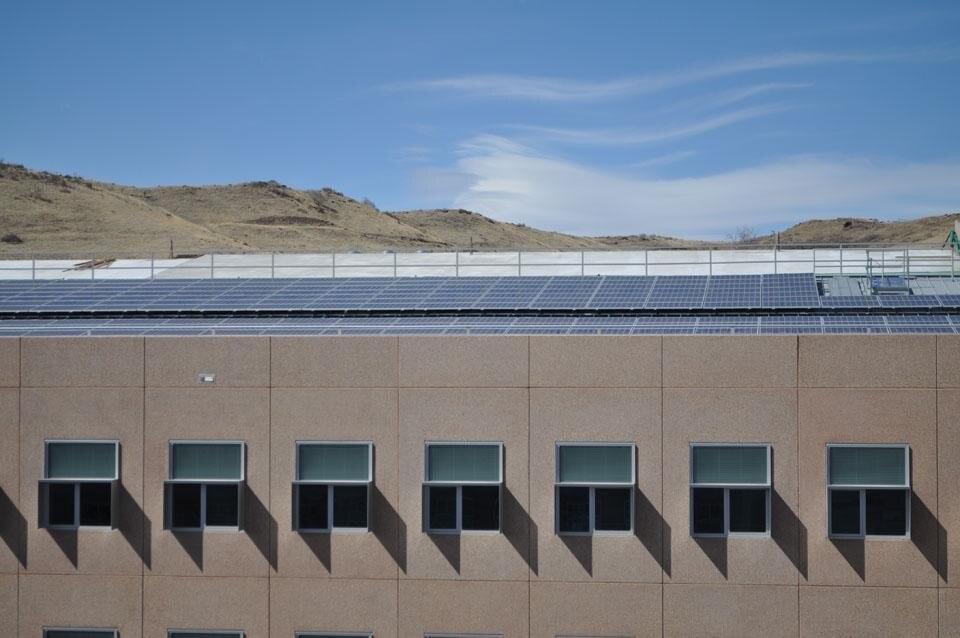

On the roof is a large photovoltaic system that supplies much of the building’s energy needs. Currently, a second system is being installed on the parking lot pergolas.
On the roof is a large photovoltaic system that supplies much of the building’s energy needs. Currently, a second system is being installed on the parking lot pergolas.
