RVDV: Mas Riells

Ron van der Vliet transforms an old ruin set in a magnificent landscape near Girona using the original materials to create the shell of a typical masía with a contemporary interior.

RVDV architecture, Mas Riells, Sant Ferriol, Girona, Spain

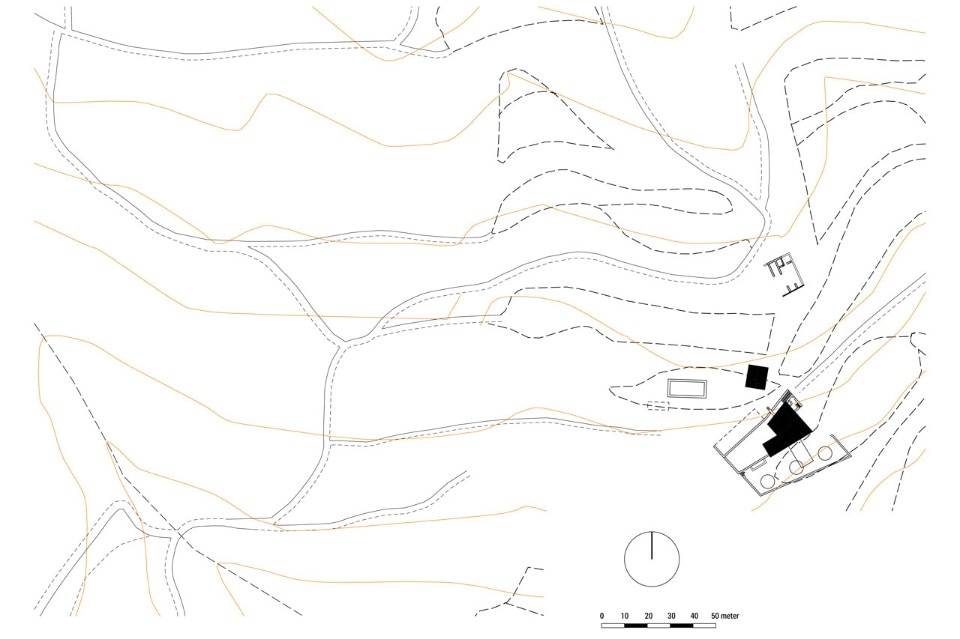

Located in La Garrotxa – a nature area in the north of Catalonia – Mas Riells was no more than a ruin, transformed into a house by RVDV architecture.

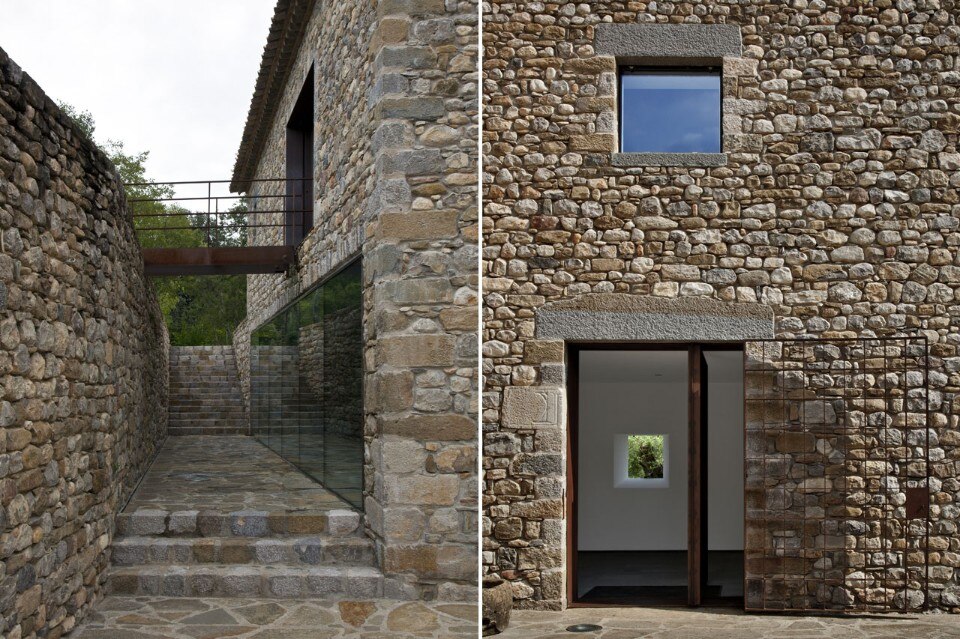

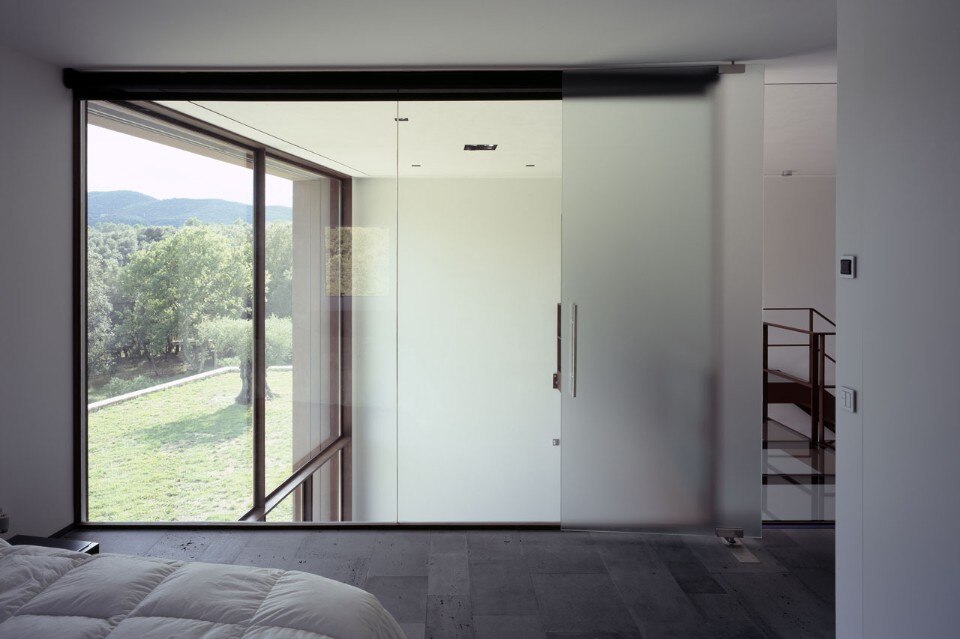

The house was rebuilt on the contours of the old masía using the original materials. Viewed from a distance, you still see a typical Catalonian farmhouse. Up close however, there is much more to discover. Inside the rebuilt shell, a spacious, modern home has been created. Unusually large windows inundate the interior with light and strengthen the connection with the outside.

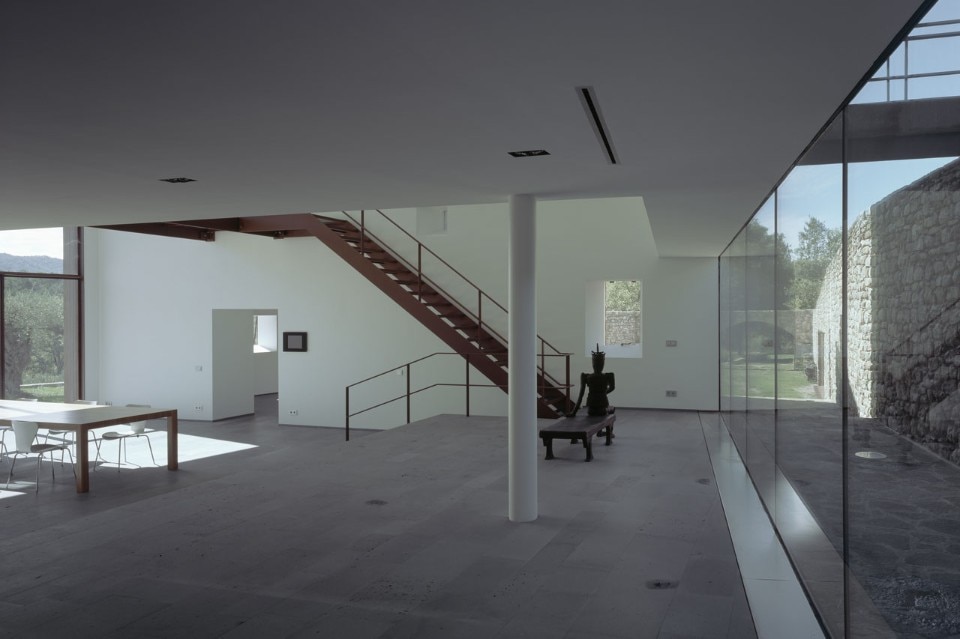

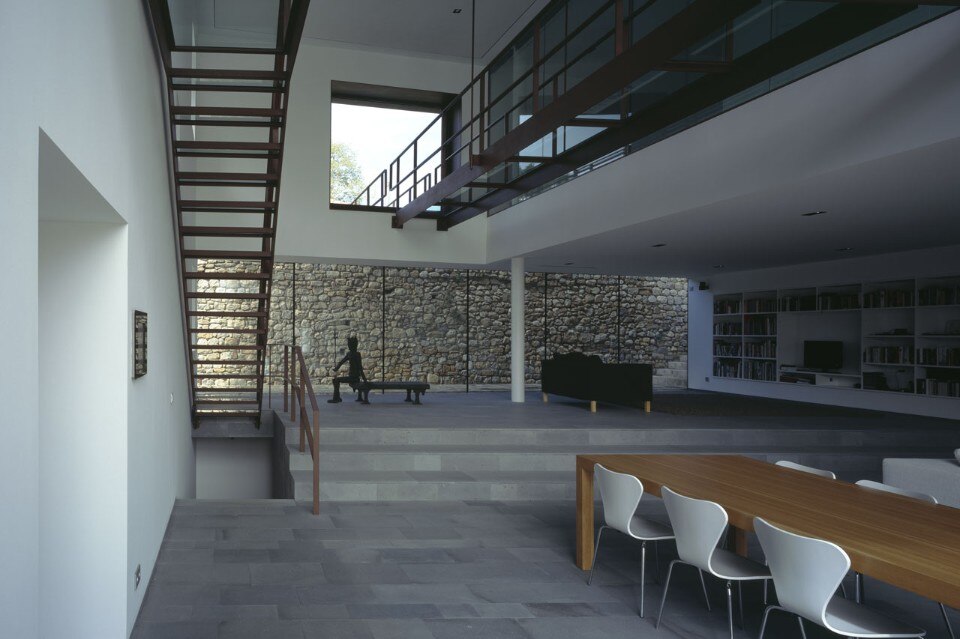

On the north side, a 10 metre long tempered glass wall looks onto an age-old stone wall, bringing a tangible sense of history inside the room. The eyes are automatically drawn to the huge glass partition on the south side, which is made from Cor-Ten steel and structural glazing.

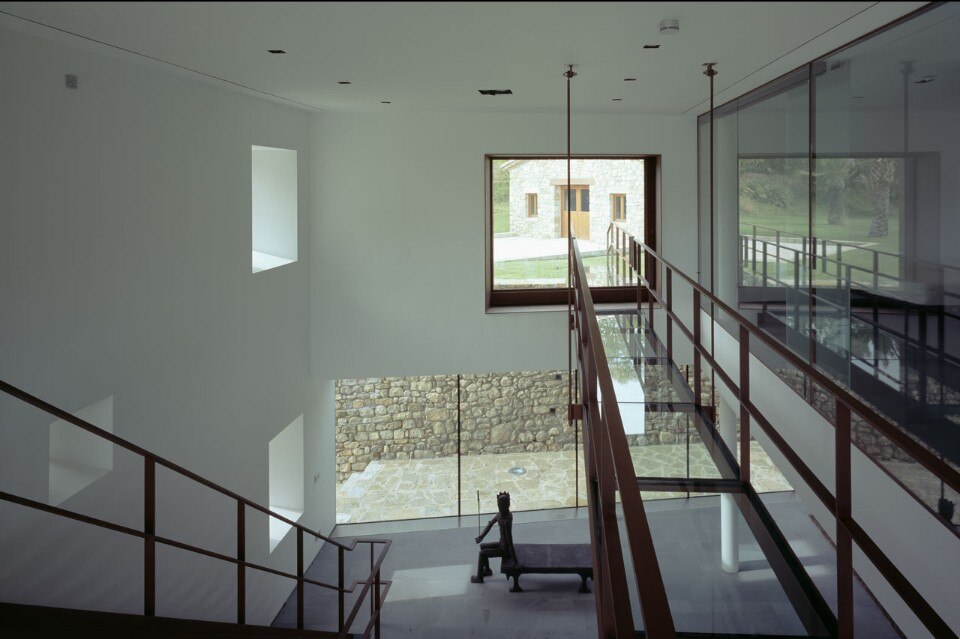

A special sliding door made from perforated Cor-Ten steel offers protection from the sun in the summer. At more comfortable temperatures, it disappears neatly into the wall. Cor-Ten steel has also been used consistently for all of the elements that have been added to the old home, such as the skilfully finished door and window frames, the glass walkways and even the specially designed open-hearth.

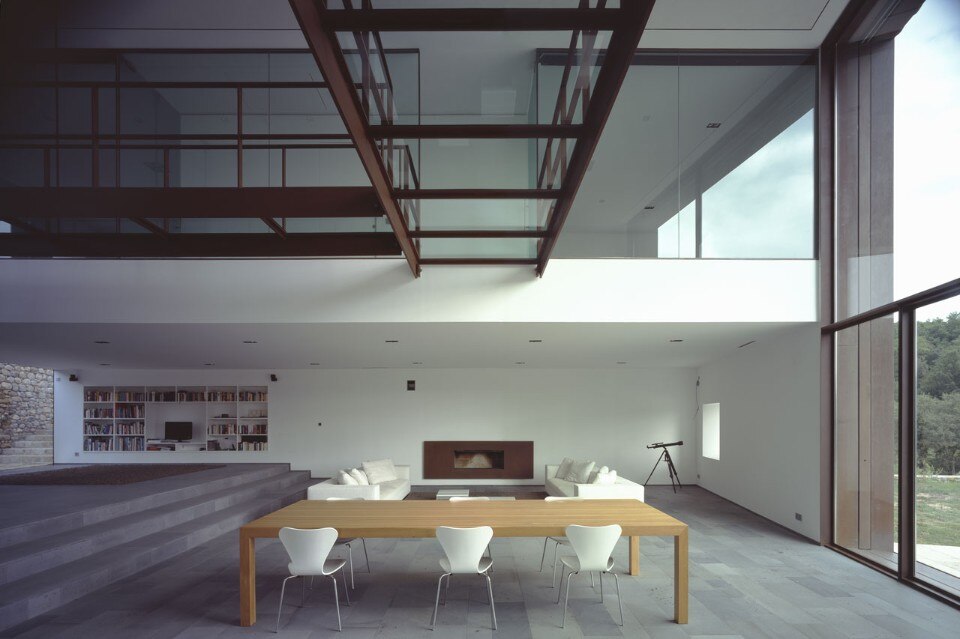

In spite of its size, you are not overpowered by the open living room. The use of different floor levels and ceiling heights naturally divides the space into zones without separating them from each other.

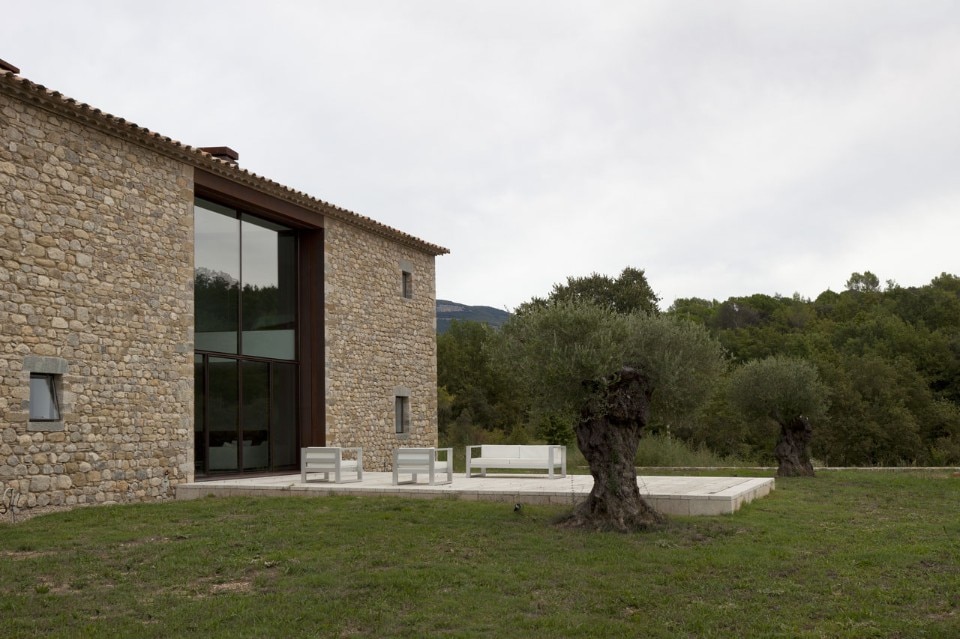

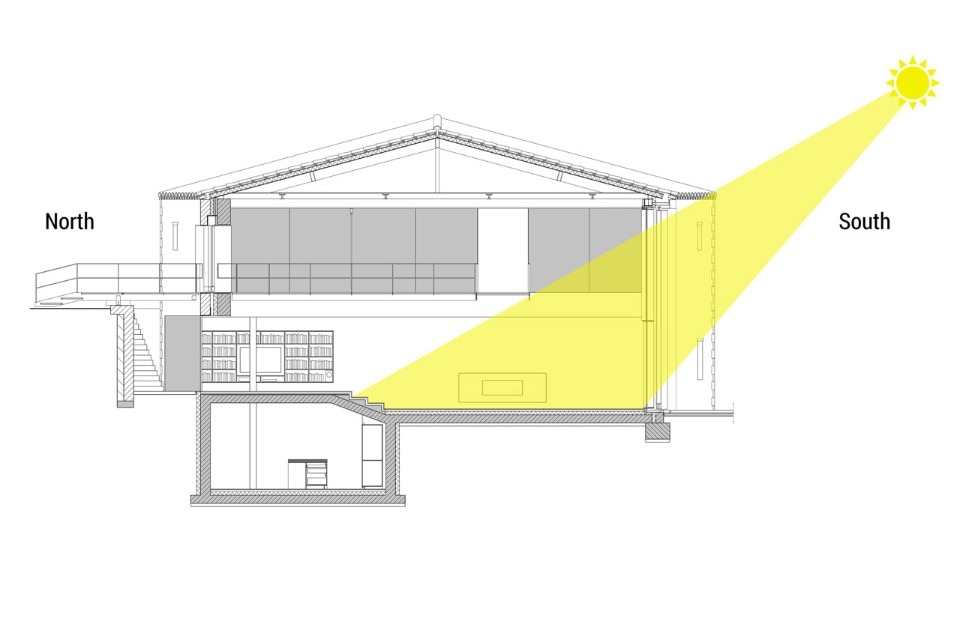

The house uses passive solar heat thank to a large glass partition on the south side. In winter, this allows sunlight to penetrate deeply into the house. It heats up the complete space, which works very well.

In the summer, the house is naturally ventilated. When the temperature is high, the perforated sliding doors can be closed. Hot air rises and leaves the house via the large opening on the north side.
