Atelier Ars’ project is about the annex of the existing TID building where architecture and design students go to fabricate wooden models at ITESO University in Guadalajara México, trying to recall the traditional Hórreos by putting into practice its teachings with a strong process of transformation.
The annex is the place where people go to apply lacquer, varnishes and all kind of coating paints; and that is the reason for the building to have natural ventilation with a system of wooden louvers that allow the air to flow through the facade.
One of the most important conditions for this project was to make a fully removable piece, because it was going to be the annex of an existing building with a LEED Certification, and the board of the department of Architecture did not wanted to affect that certification with a new extension. Therefore, the architects planned and designed the building considering a bolted steel structure with wooden floor structure, that can be dismounted in the future if necessary.

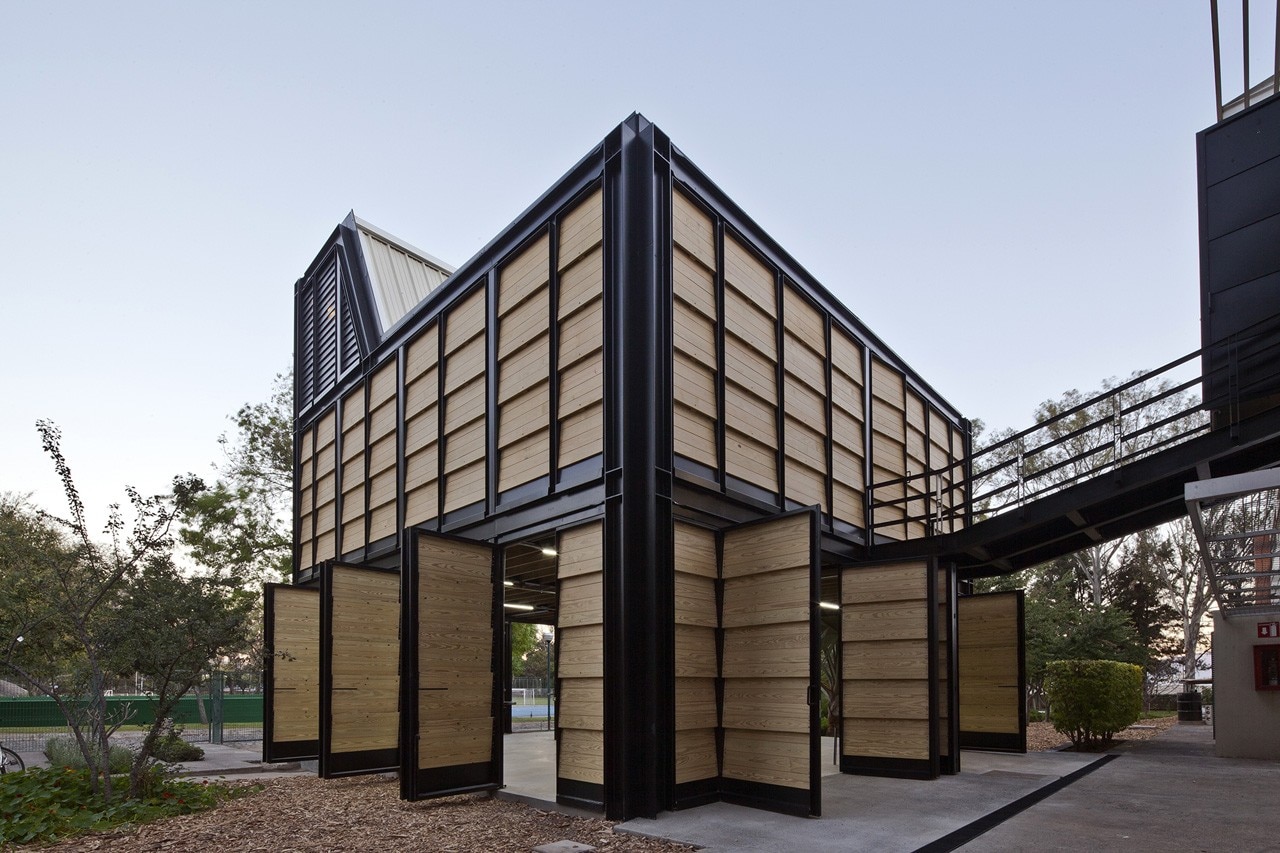

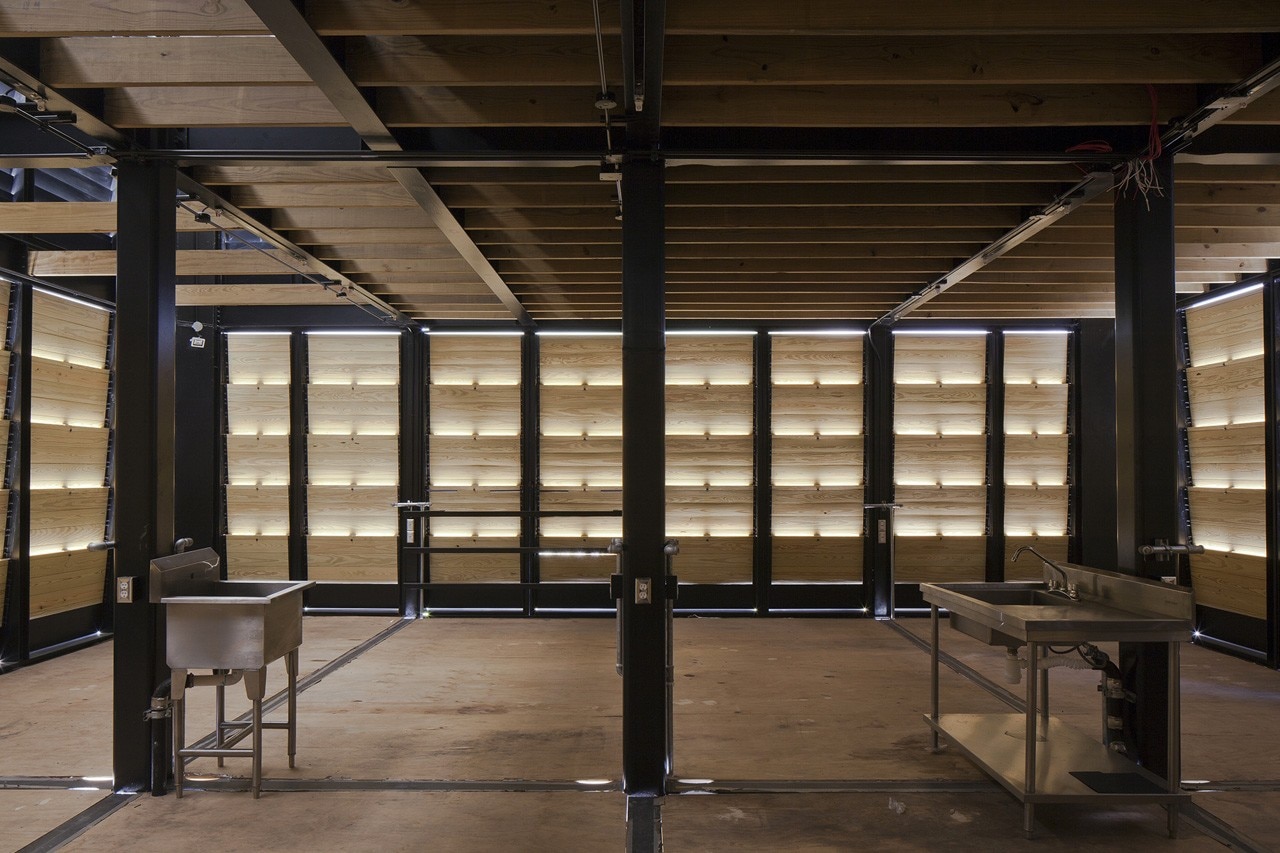

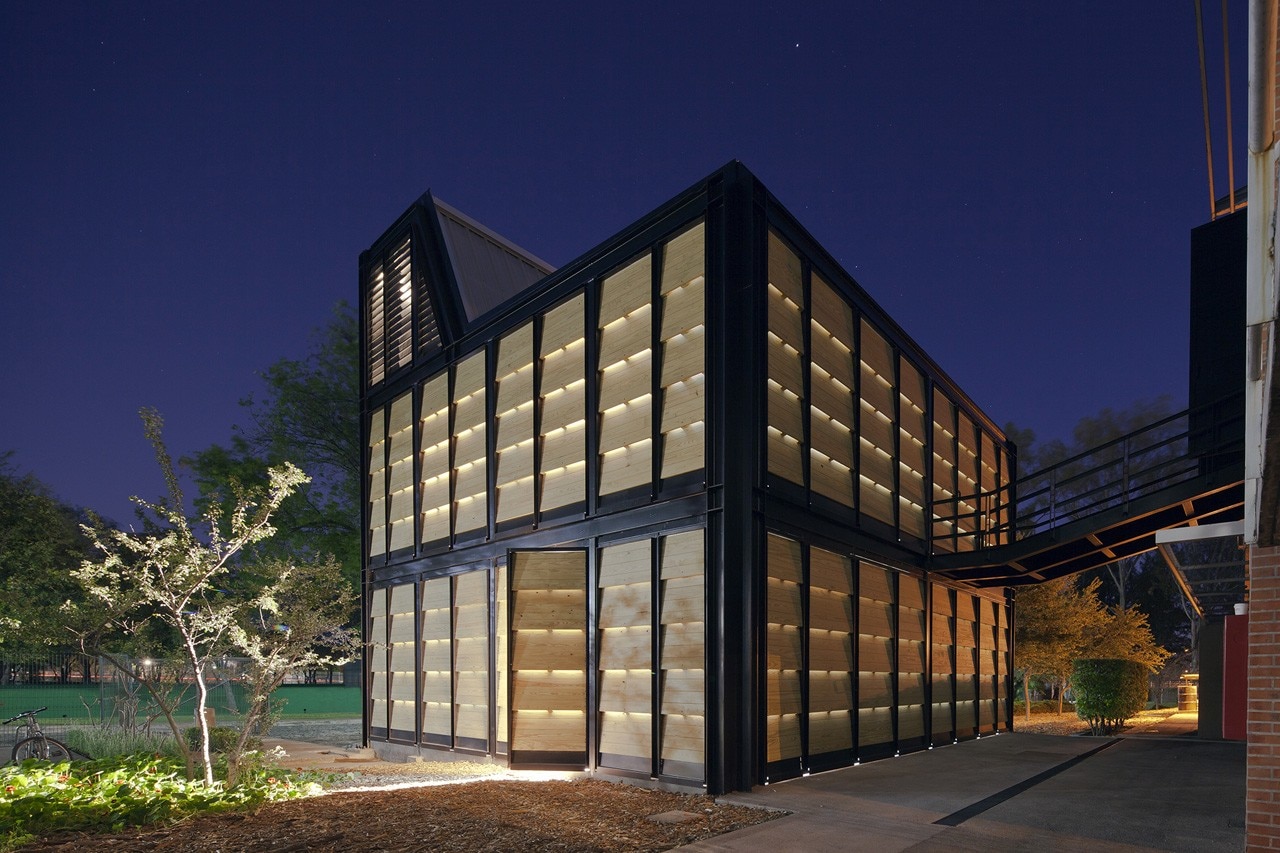

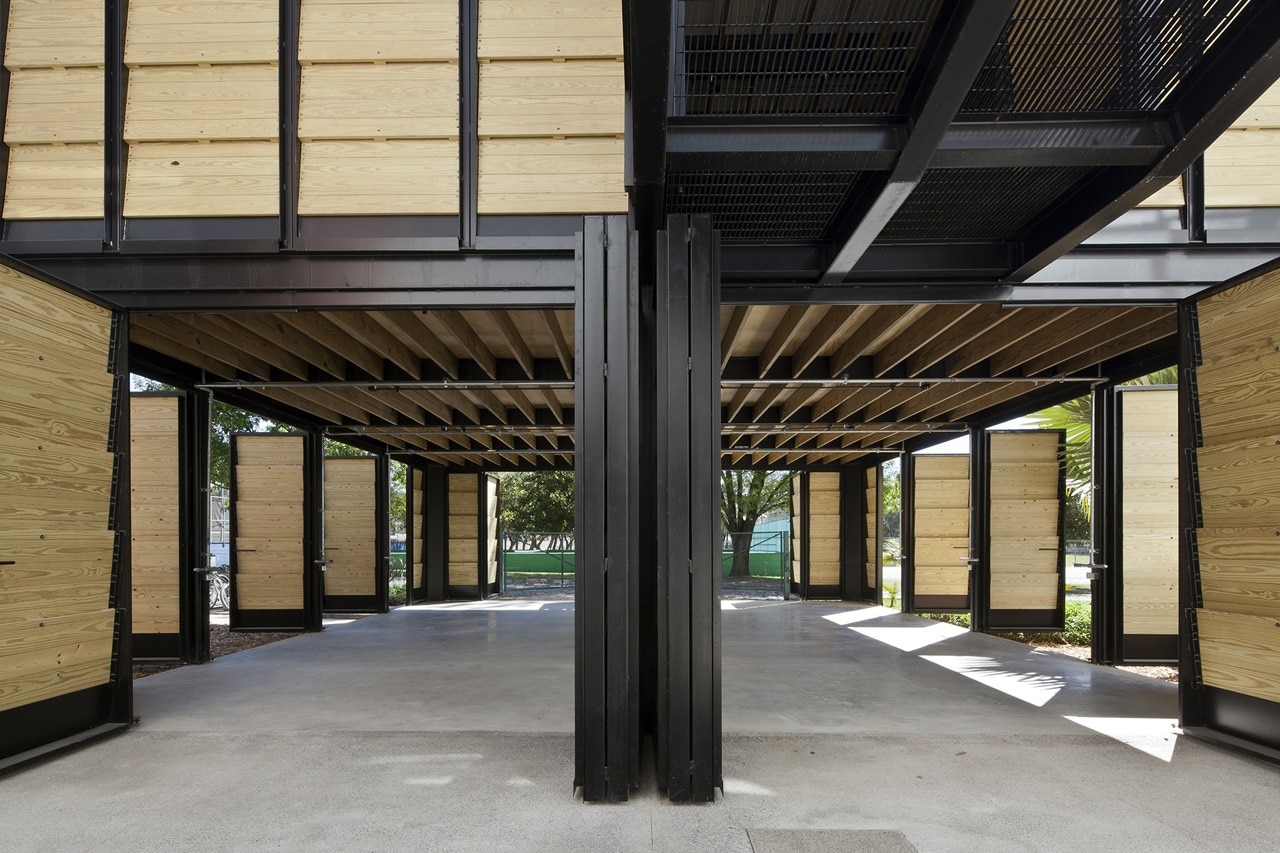

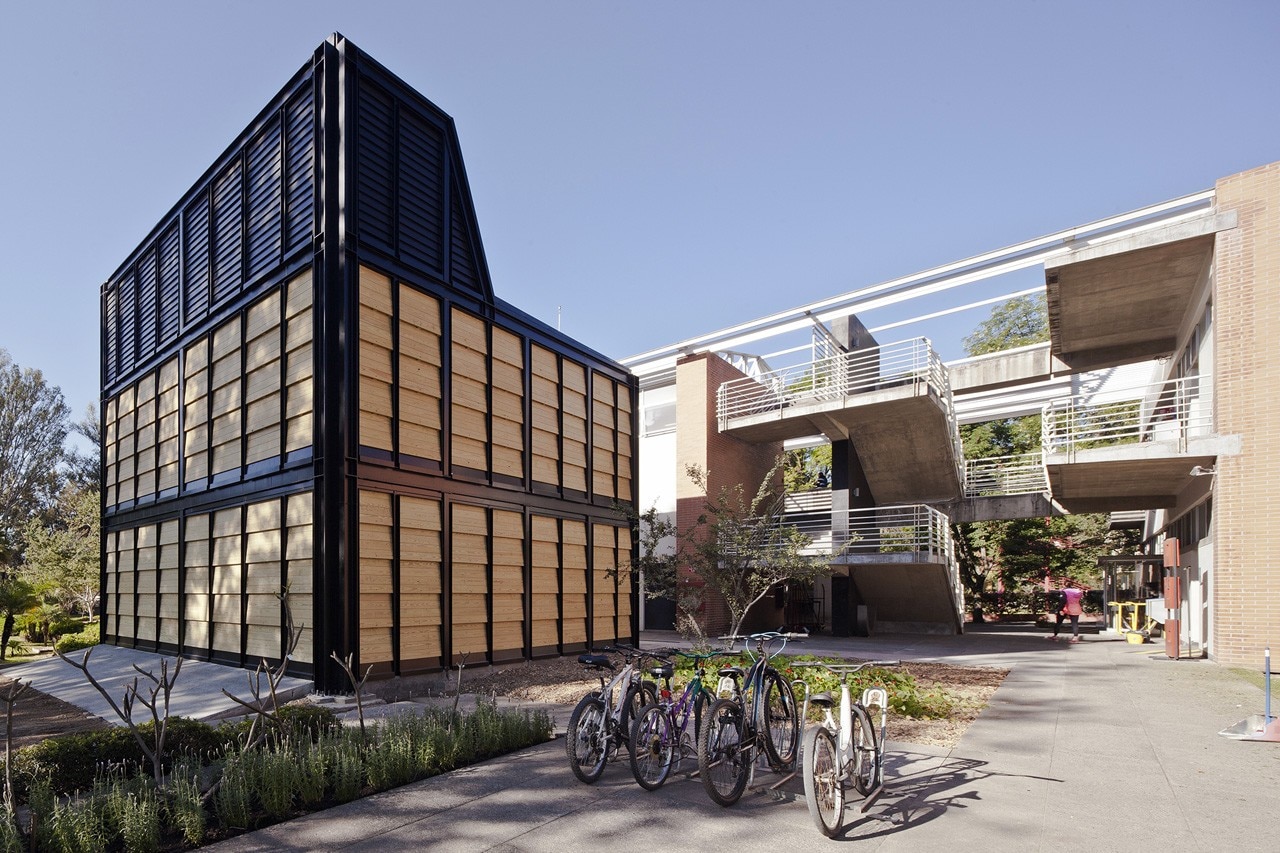

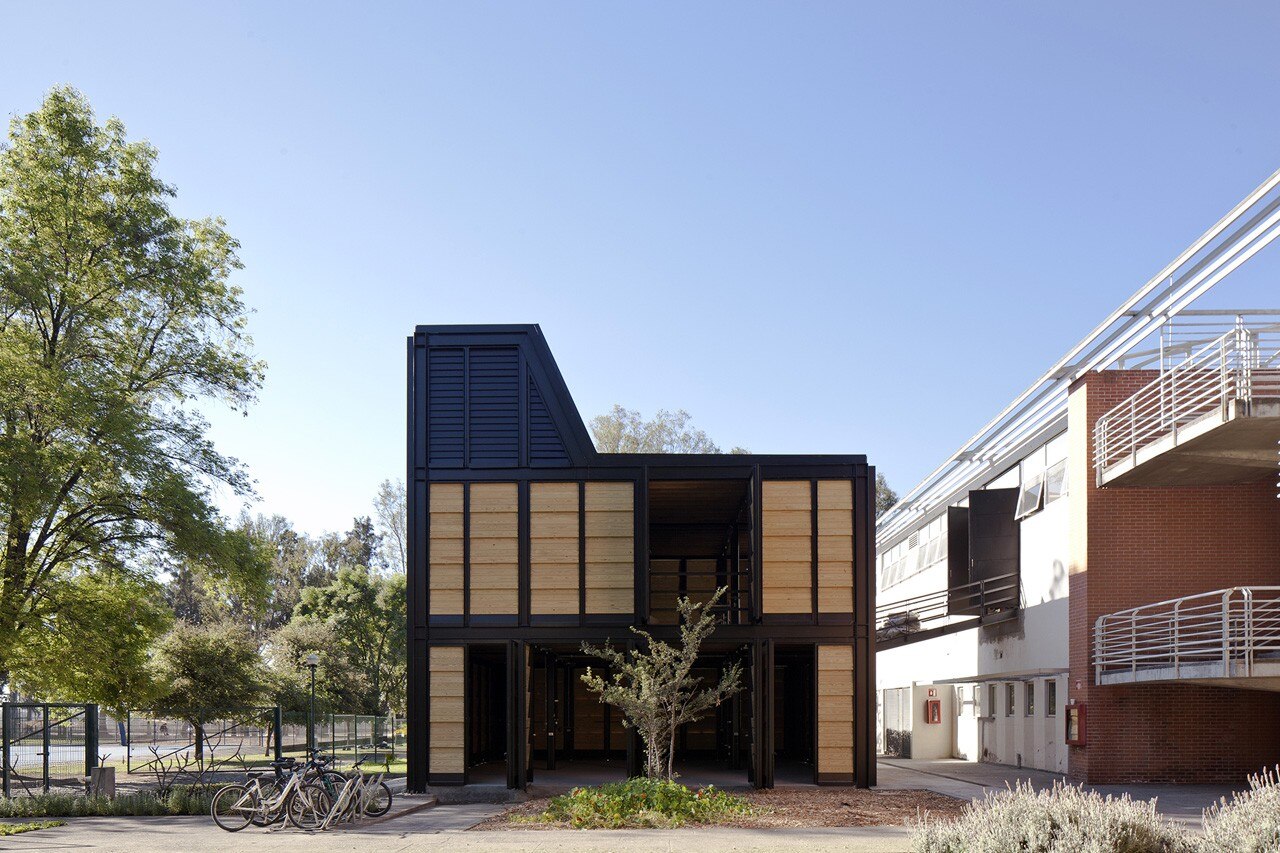

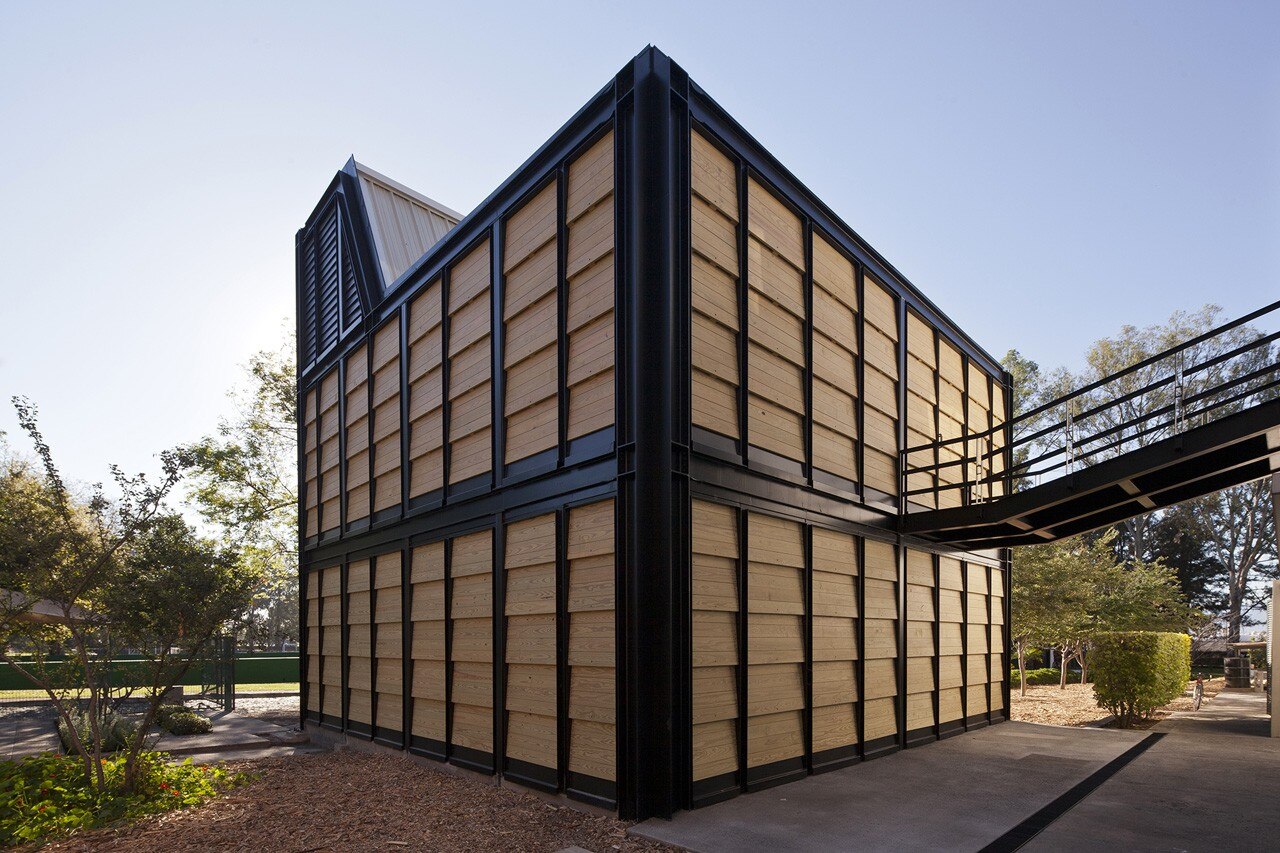

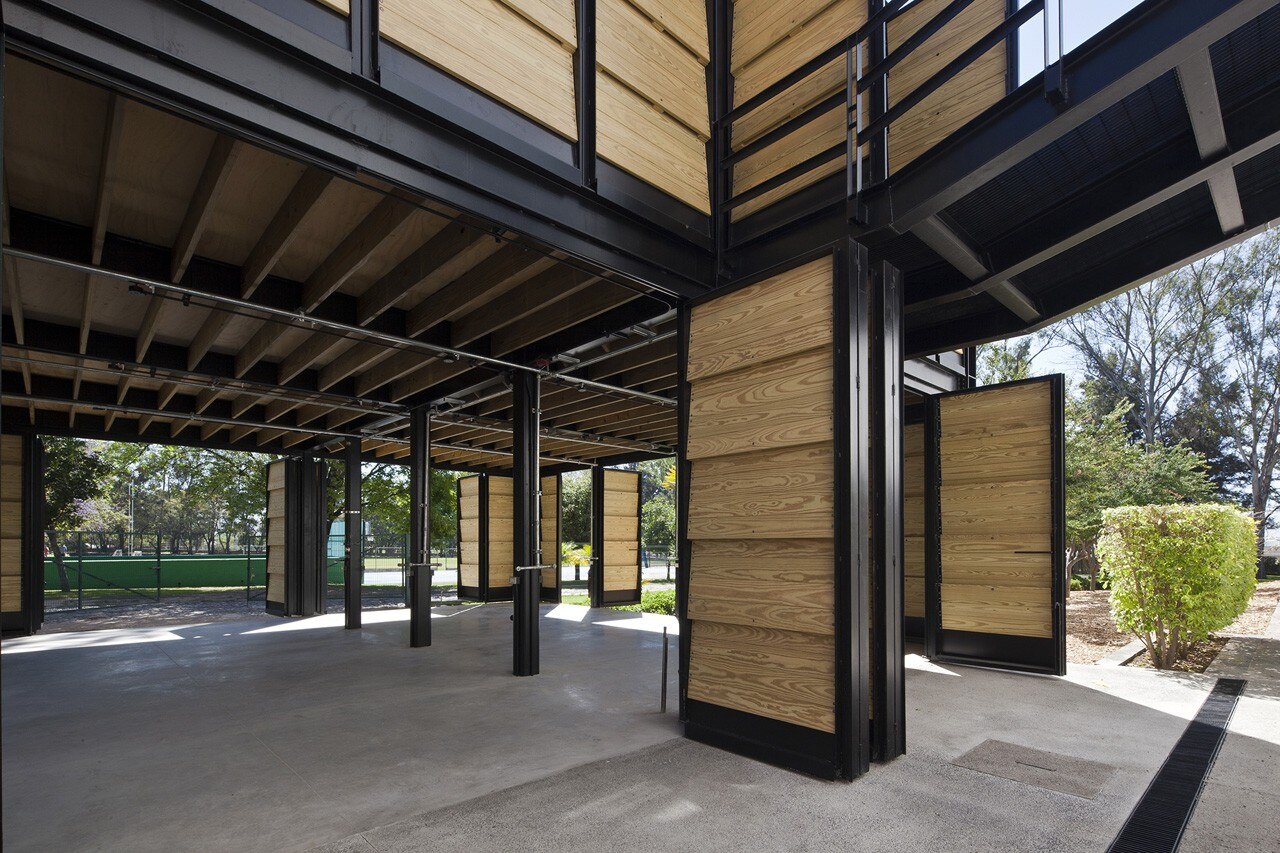

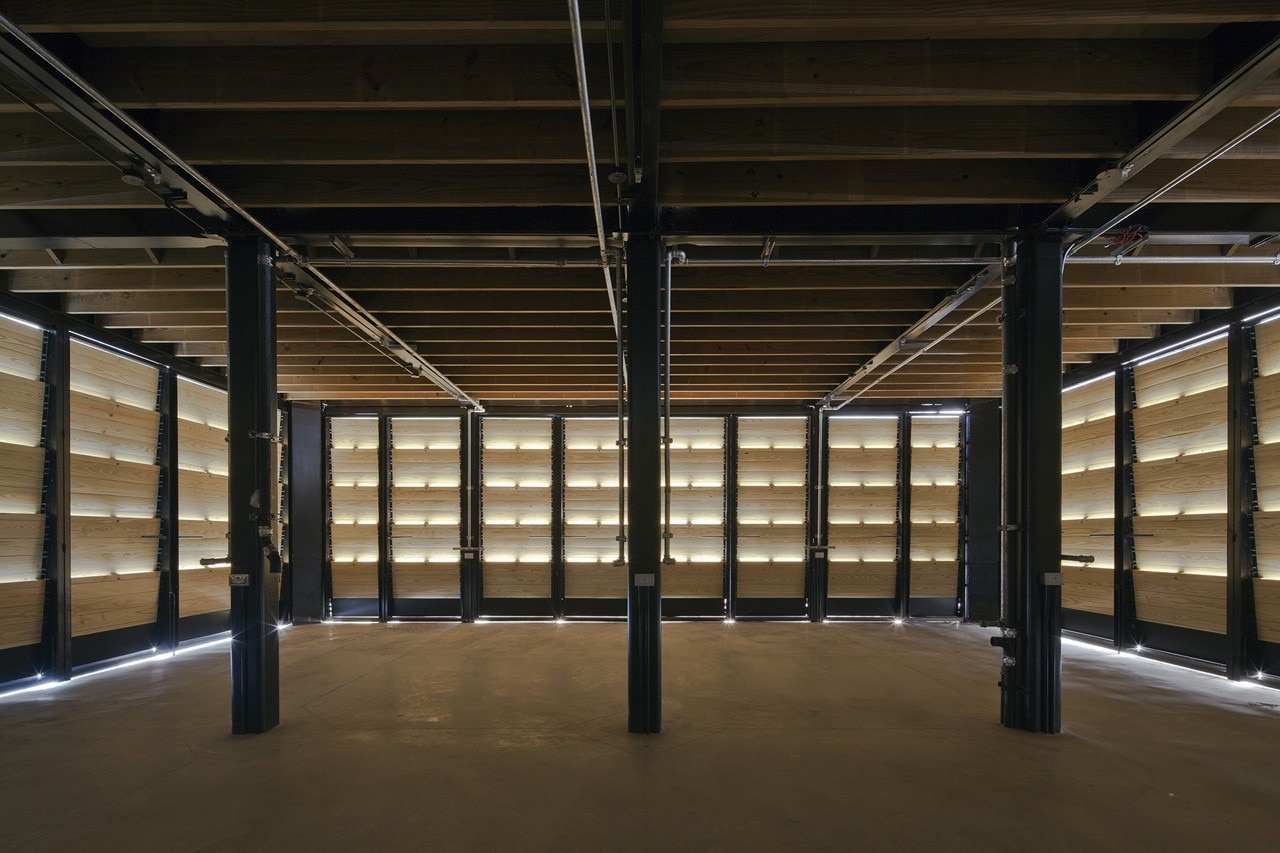

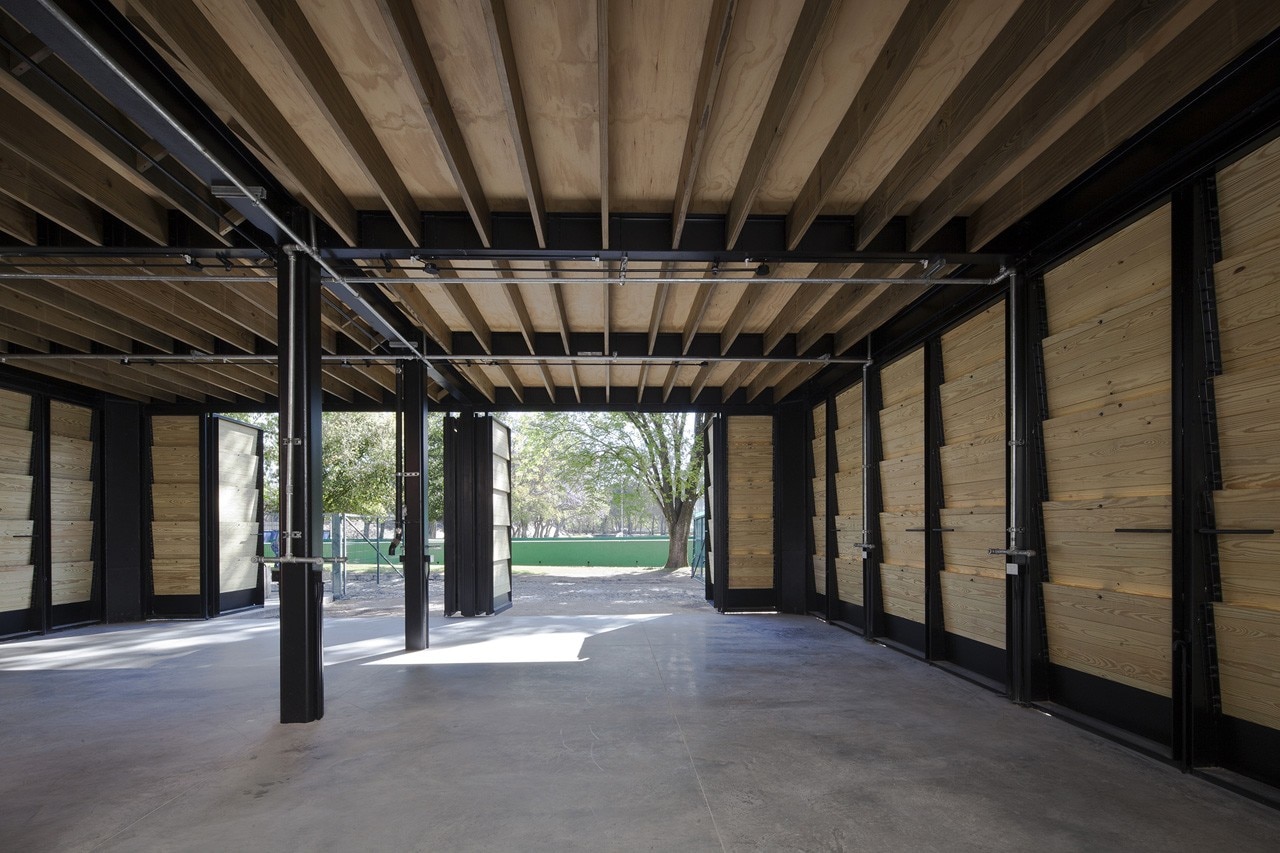

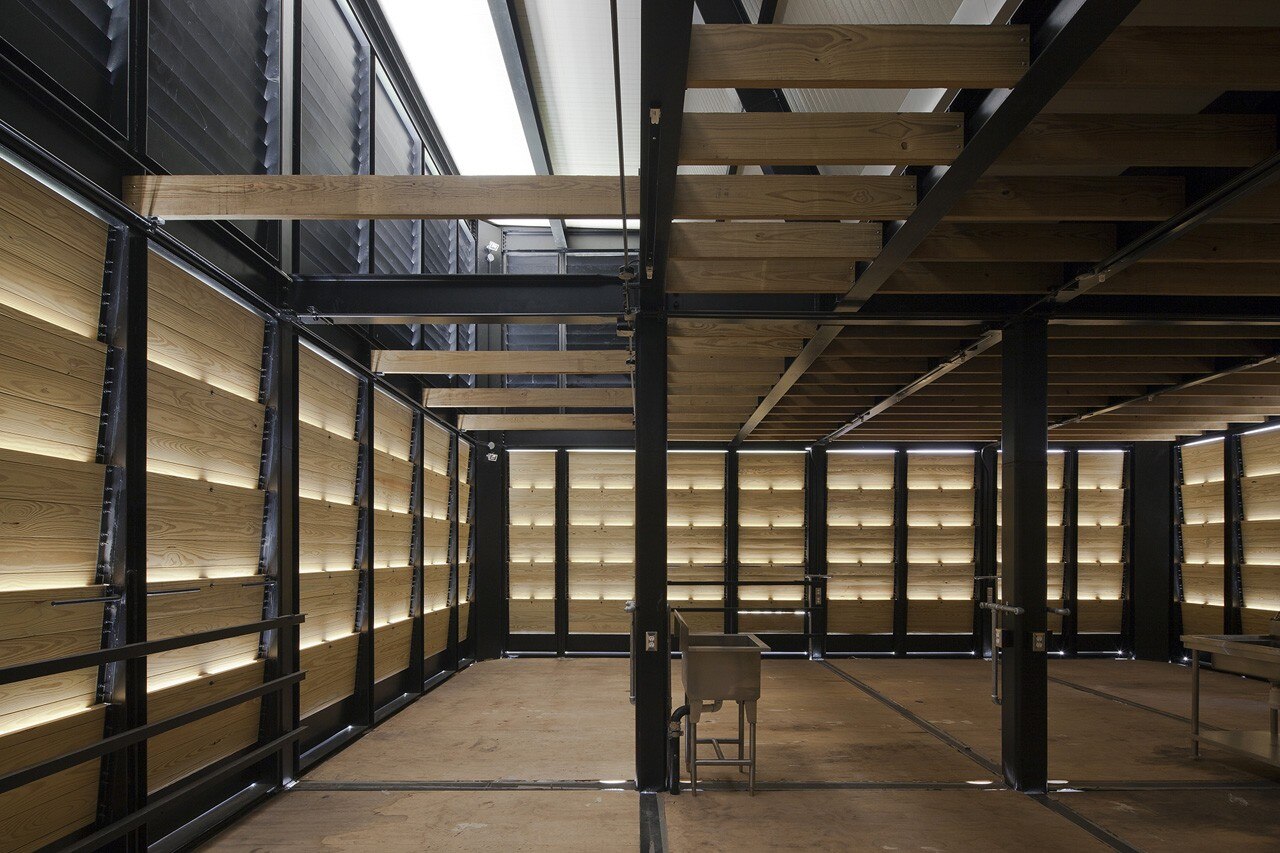

The structure of the building is made of “I” steel beams and columns, while the facade is made of large wooden louvers that allow the air to flow through its gaps. For the same reason, the top of the buildingwas designed to work as a chimney draft, in order to get a highly efficient natural ventilation system. Among all, the facades can open to get fresh air and to ventilate when many students are using the space. The shape of the building is a metaphor of air flowing. Thinking about its character, the building communicates its use clearly: the wooden atmosphere and the exposed steel structure tell us about a workshop space.
TID Annex, Guadalajara, México
Program: school workshop
Architects: Atelier Ars° (Alejandro Guerrero, Andrea Soto)
Building contractor: SGR Edificaciones
Structural engineering: CAUTIN
Client: ITESO University
Area: 200 sqm
Completion: 2015
